Introduction

Not all the times can we observe the true transition state of a reaction. Computing a reaction help us to visualize a transition state of the very reaction we are looking at, and can even predict the favoured routine of it by calculating the energy levels. This experiment includes three Diels-Alder type reactions, by computing different TSs, this might reveal the pathway of a true reaction.

Nf710 (talk) 09:11, 21 November 2016 (UTC) You should have talked about How to determine a transition state here, and talking about the methods would have bee good.

Exercise 1:Reaction of butadiene with ethene

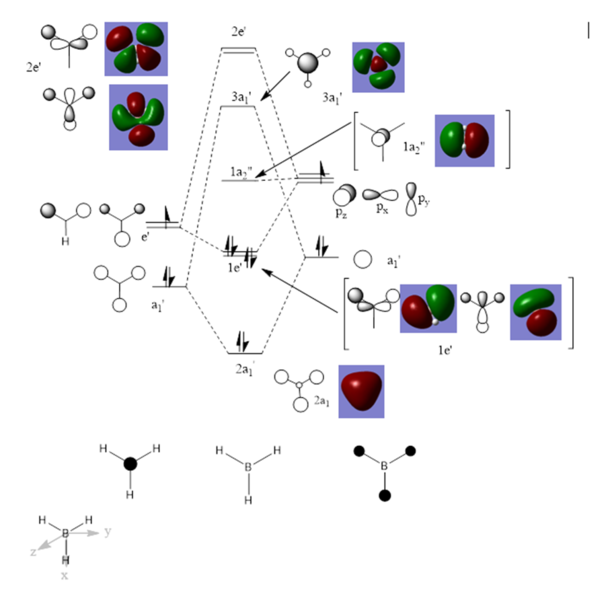

Diagram of expected mixing of certain MOs and energies during the reaction.

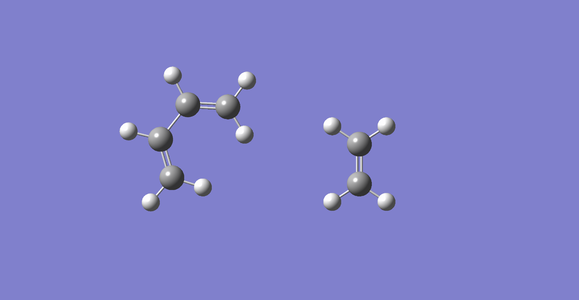

DFT optimized reactants.

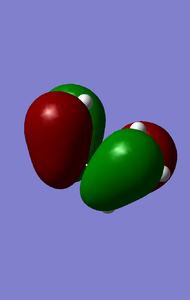

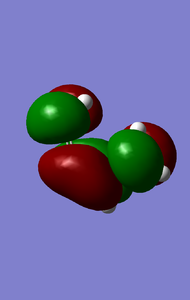

MOs of reactants that involved in the reaction(-0.351,0.01105kJ/mol).

MOs of reactants that involved in the reaction(-0.39220,0.04256kJ/mol).

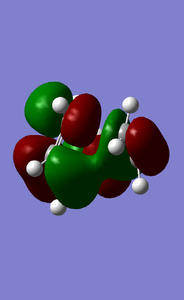

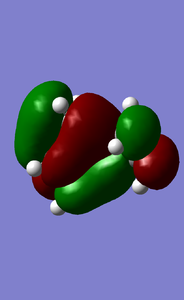

MOs of the reaction transition state(-0.32755,-0.32534,0.01731,0.03067kJ/mol).

Above shows the expected interaction of MOs and computed ones. The shown expected and computed MOs are of different energy levels and relationship, indicating different MOs interacted. This is because the model given to the computer is not very close to reality and the computing method used in Gaussian has its limitation. However, this does not affect the general rule of "g-g" "u-u" interation. "g-u"does not interact, or, the interaction gives a wave function equals to 0. Thus, the requirement for reaction symmetry is to let the MO pair or pairs which shall interact, approaching each other at right orientation.

Bond Length Change during reaction(Angstrom)

butadiene ethene TS butadiene TS ethene Tipical sp2 Tipical sp3
C=C 1.33523,1.33530 1.32731 1.35729,1.35732 1.45000 1.35520 /
C-C 1.46852 / 1.43938 / / 1.54000

The data give idea of how the C-C bond lengths and their hybridization change through the reaction pathway. The C=C stretches and C-C shrinks comparing starting material and TS. Comparing these with "Tipical sp2 C-C" and "Tipical sp3 C-C", we can probably conclude that this is the same as changing in hybridization. C=C is sp2 hybridized and it becomes longer, indication a increasing in sp3, or p character. C-C is sp3 hybridized and it's decrease in length indicates the increase in sp2, or increase in s character. The final product shows that the 3 C=C ends in single bonds and the C-C becomes C=C. The Van der Waal radius for C is 170pm[1] and it is larger than TS carbon bonds. The Van der Waal radius comes from averaging a C-C single bond, however in the TS, the C bonds are bearing double to single or opposite transition. No wonder Van der Waal radius has a larger value.

Nf710 (talk) 09:20, 21 November 2016 (UTC) This section was done quite well, you could have used jmols to display the orbitals


Exercise2:Cyclopentadiene with Benzoquinone

benzoquione cyclopentadiene exo TS exo product endo TS endo product
energy(kJ/mol) 0.005536 0.111695 0.179487 0.107283 0.180125 0.108082

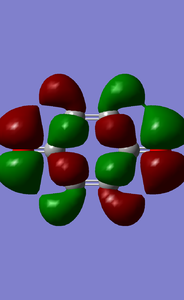

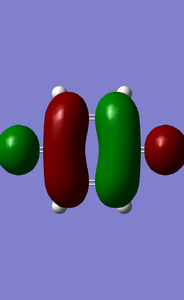

MOs of benzoquinone associated with D-A reaction

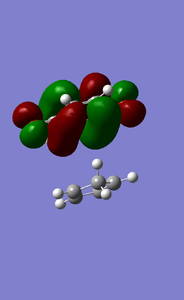

MOs of cyclopentadiene associated with D-A reaction

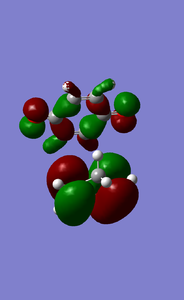

MOs of exo D-A reaction transition state

reactants exo reaction barrier exo reaction energy endo reaction barrier endo reaction energy kinetically favoured thermodynamically favoured
energy(kJ/mol) 0.117231 0.062256 -0.009948 0.062894 -0.009149 exo exo

09:31, 21 November 2016 (UTC) Yo should have used B3LYP here. PM^ is not a good enough method it is too parameterised. It should typically be used for finiding initial geometries for higher level calculations. or calculations on large molecules.

Exercise3:O-Xylylene with Sulphur Dioxide

(You can't simply write "kJ/mol" after an energy. The units are in Hartree and the conversion is ~2625kJ/mol to the Hartree Tam10 (talk) 13:55, 11 November 2016 (UTC))

(Something has gone wrong with your cheletropic calculations. You shouldn't be getting a positive reaction energy. It looks like the pathway is reversed Tam10 (talk) 13:55, 11 November 2016 (UTC))

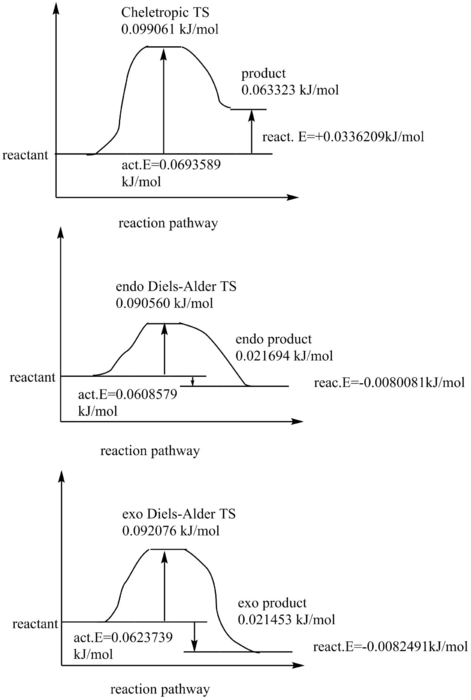

Cheletropic reaction is strongly disadvantaged comparing to Diels-Alder reactions, due to high activation energy and positive reaction energy which gives its endothermic nature. With the two Diels-Alder reactions, there is a small difference between exo and endo pathways. The endo has a slightly lower activation energy due to the stabilization at the back of dienen part during TS, so endo is the kinetically favored product. However, endo is not the thermodynamically favored one, as the exo one has a lower, or more negative reaction energy. Both endo and exo have negative reaction energy and are exothermic, but exo gives out more energy therefore more stable. During the reaction, the diene part in the 6-membered ring together with the new-formed C=C in the very ring forms resonance structure. In the computed TS we can see that the whole ring is surrounded by dotted line. In a resonance structure, all bonds are of the same length, between typical C-C and C=C. The carbon bond lengths vary during the reaction as the C-Cs and C=Cs need to end in a same length. This is shown in the GIF of IRC pathway. However, if we cyclize at the diene part in the ring, the will not be any benefit from resonance, thus this is chosen against.

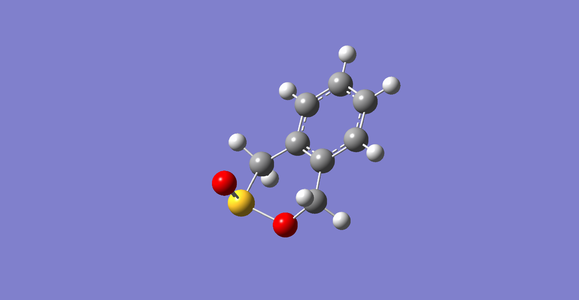

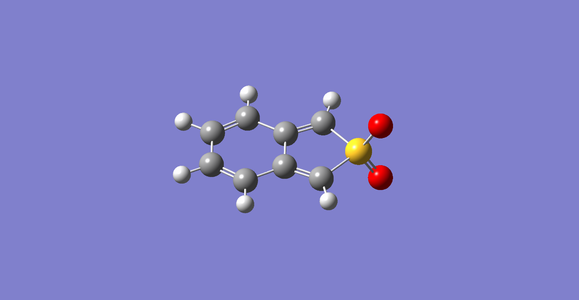

semi-empirical optimized cheletropic product.

semi-empirical optimized endo D-A product

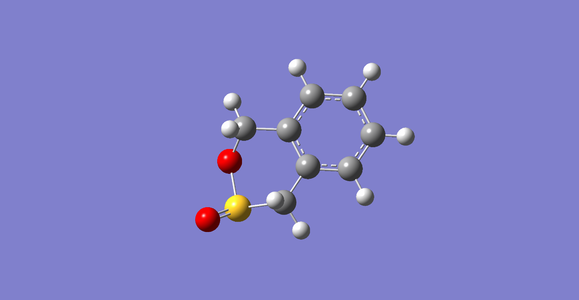

semi-empirical optimized exo D-A product

IRC pathway of endo D-A

IRC pathway of exo D-A

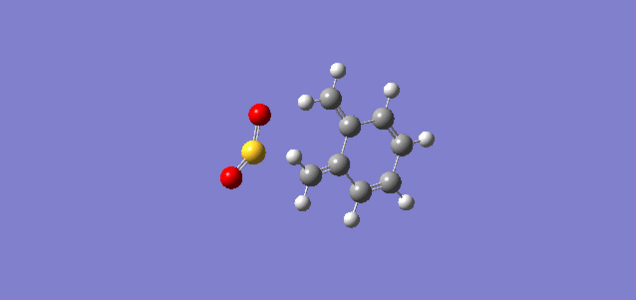

IRC pathway of cheletropic reaction
