Introduction

Computational chemistry provides invaluable insights into many aspects associated with the molecular structure of a molecule. With the increasing use of inorganic compounds in catalysis, predetermining the properties of the compound is useful. Computational analysis can be used to determine the energies of various structures and their stability. Calculations can also be carried out to determine the electron density within the molecule and thus molecular orbitals within the structure. These results can be used to predict the reactivity of the molecule. Computational analysis carried out in this way has been used to find alternative catalysts for the production of ethene. Many compounds were screened relatively easily eliminating the time consuming synthesis of each individual compound. This enabled the discovery of cheaper, more selective catalytic systems. REFERENCE http://www.rsc.org/chemistryworld/News/2008/June/05060802.asp

In this experiment, the structures of Lewis acids, borane, boron tribromide and gallium(III) bromide were analysed using optimisation calculations.

EX₃ Section

Optimisation of BH₃

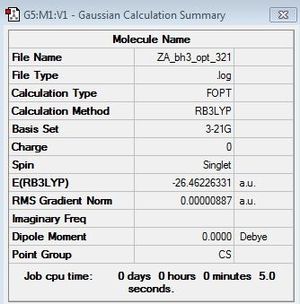

B3LYP/3-21G level

Optimisation log file here

summary data	convergence	Jmol
	Item Value Threshold Converged? Maximum Force 0.000020 0.000450 YES RMS Force 0.000011 0.000300 YES Maximum Displacement 0.000082 0.001800 YES RMS Displacement 0.000046 0.001200 YES Predicted change in Energy=-1.789608D-09	optimised borane molecule

B3LYP/6-31G(d,p) level

Optimisation log file here

summary data	convergence	Jmol
	Item Value Threshold Converged? Maximum Force 0.000009 0.000450 YES RMS Force 0.000006 0.000300 YES Maximum Displacement 0.000040 0.001800 YES RMS Displacement 0.000025 0.001200 YES Predicted change in Energy=-5.264142D-10	optimised borane molecule

Optimisation of GaBr₃

GaBr₃:B3LYP/LANL2DZ

optimisation file: DOI:10042/143676

summary data	convergence	Jmol
	Item Value Threshold Converged? Maximum Force 0.000000 0.000450 YES RMS Force 0.000000 0.000300 YES Maximum Displacement 0.000003 0.001800 YES RMS Displacement 0.000002 0.001200 YES Predicted change in Energy=-1.307752D-12	optimised gallium(III) bromide molecule

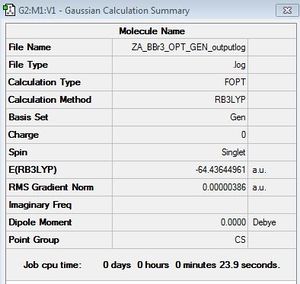

Optimisation of BBr₃

BBr₃:6-31G/LANL2DZ

optimisation file: DOI:10042/143887

summary data	convergence	Jmol
	Item Value Threshold Converged? Maximum Force 0.000008 0.000450 YES RMS Force 0.000005 0.000300 YES Maximum Displacement 0.000036 0.001800 YES RMS Displacement 0.000024 0.001200 YES Predicted change in Energy=-3.974148D-10	optimised boron tribromide molecule

Geometry Comparison

Job files and Summary tables

geometry data

	BH3	BBr3	GaBr3
r(E-X)	1.19	1.93	2.35
θ(X-E-X)	120.0	120.0	120.0

The geometry data table shows the bond lengths and bond angles found from the optimised structures of BH3, BBr3 and GaBr3. The table shows that the E-X bond length increases upon changing the ligand on the B atom from H to Br. The increase in bond length from 1.19 Å to 1.93 Å is as a result of difference in orbital overlaps. The larger, more diffuse orbitals of Br have a poorer orbital overlap with the atomic orbitals of B and so a weaker, longer bond is formed.

The H and Br atoms differ in electronegativity (χBr = 2.96, χH = 2.1). The B-Br bond will be more polarised than the B-H bond due to the higher electronegativity of the Br atom. The difference in electronic structure of the H and the Br atoms affects the stabilisation of the B-X bond. The lone pair of electrons in a 4p orbital of Br are donated to the empty 2p orbital of the electron deficient B. This results in an extra stabilisation of the Br-B bond not present in the B-H bond.

Changing the central atom from a lighter Group 13 element, B to a heavier Ga results in an increase in E-Br bond length from 1.93 to 2.35 Å. The difference in bond length can be rationalised by comparing atomic radii of Ga and B. Ga will have a larger atomic radius as it has a greater number of occupied electron shells. This will result in a longer distance between the covalently bonded Ga and Br. B and Ga are both Group 13 elements however, differ in their electronic structure. B consists of five electrons whereas Ga has thirty one electrons. This results in a difference in their electrostatic interactions however, overall, bonding interactions are similar as they have the same number of valence electrons. Strength of bonding interactions will differ between B and Ga due to the difference in size of their valence s and p orbitals. The inert pair effect is results in formation of Ga(I) compounds however, B is always found in the +3 oxidation state. However, only a relatively small number of Ga(I) compounds exist. Ga(III) compounds are more common.

In valence bond theory, the interaction of atomic orbitals on individual atoms results in formation of a bond. The wavefunctions of individual atoms are superimposed to form a new wavefunction representing the electron pair within the bond. Valence bond theory considers the bonds within the molecule as having formed due to specific interactions of two unpaired electrons. Molecular orbital theory extends the idea of individual interactions to the idea that electrons in a polyatomic molecule are delocalised over the whole molecule. The molecule is held together by interactions of the electrons distributed across the whole molecule rather than specific interactions between two unpaired electrons. Although bonds are represented as localised 2c-2e bonds, the true representation of bonding interactions is given by the molecular orbitals formed as a results of the linear combination of atomic orbitals according to molecular orbital theory. The molecular orbitals show the electron density is spread over the whole molecule. Electrons are not held in localised 2c-2e bonds as drawn.

The strongest known bond is the covalent N≡N triple bond, with a bond dissociation energy of 944.84 kJ mol-1. In comparison, the Ne-Ne bond is much weaker with a bond dissociation energy of 4.31 kJ mol-1. A medium bond of intermediate energy is an O=O double bond with a bond dissociation energy of 498.36 kJ mol-1.

A predefined value is used to draw the bond in Gaussview. Therefore, if a bond is not drawn it does not mean the bond is not present.

Frequency calculations

BH₃:B3LYP/6-31G(d,p)

Frequency file: here

summary data	low modes
	Low frequencies --- -13.3330 -13.3277 -9.1671 -0.0013 0.0199 0.3761 Low frequencies --- 1162.9614 1213.1301 1213.1304

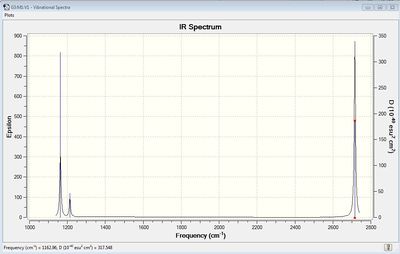

Vibrational spectrum for BH₃

wavenumber	Intensity	IR active?	type
1163	93	yes	bend
1213	14	very slight	bend
1213	14	very slight	bend
2583	0	no	stretch
2716	126	yes	stretch
2716	126	yes	stretch

|

The results show there are six vibrations. However, only three peaks are observed in the IR spectrum. The vibrational mode of the molecule must result in a change in dipole moment in order for it to be IR active. The bends corresponding to frequencies of 1163 and 1213 cm_-1 are antisymmetric thus, result in a change in dipole moment and are therefore IR active and two peaks are observed at the corresponding frequencies. The bend corresponding to the wagging mode has a greater intensity than the bend corresponding to the rocking modes at 1213 cm_-1. The bends observed at 1213 cm_-1 correspond to one peak on the computed IR spectrum. This is because the vibrations are degenerate. The third peak seen at a higher frequency of 2716 cm_-1 arises due to antisymmetric stretches. The frequency of stretches is much higher than the frequency of the bends because................On the other hand, the symmetric stretch corresponding to a frequency 2583 cm_-1 does not result in a change in dipole moment. Therefore, it is IR inactive and not observed on the spectrum.

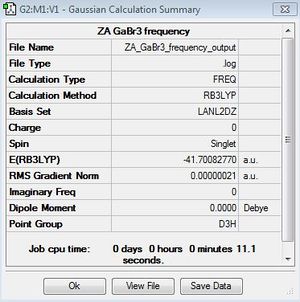

GaBr₃:B3LYP/LANL2DZ

Frequency file: File:ZA GaBr3 frequency outputlog.txt

summary data	low modes
	Low frequencies --- -1.4877 -0.0015 -0.0002 0.0096 0.6540 0.6540 Low frequencies --- 76.3920 76.3924 99.6767

Vibrational spectrum for GaBr₃

wavenumber	Intensity	IR active?	type
76	3	yes	bend
76	3	yes	bend
100	9	yes	bend
197	0	no	stretch
316	57	yes	stretch
316	57	yes	stretch

|

The results show there are six vibrations. As with borane, only three peaks are observed on the IR spectrum. The bends corresponding to the scissoring and wagging modes at 76 and 100 cm^-1 respectively result in a change in dipole moment as they are antisymmetric. The third peak arises due to the antisymmetric stretches of frequency 316 cm^-1. The symmetric stretch corresponding to a frequency of 197 cm^-1 does not result in a change of dipole moment thus is IR inactive. The two degenerate vibrations at frequencies 76 and 316 cm^-1 arise as one peak in the spectrum and thus, three peaks are observed.

Comparison of vibrational spectra of GaBr₃ and BH₃

One difference between the IR spectra of borane and gallium(III) bromide is the values of wavenumber for the bands. The spectrum of gallium(III) bromide shows peaks at lower wavenumbers. This is due to the difference in mass of the two triatomic molecules. Gallium(III) bromide is approximately twenty times heavier than borane. This results in gallium(III) bromide having a much larger reduced mass and therefore, lower vibrational frequencies for its vibrations. The heavier gallium and bromine atoms will move more slowly than the boron and hydrogen atoms. It is also possible that the difference in wavenumber is due to a difference in bond strength. A lower vibrational frequency indicates that the bonds are weaker. This is because the wavenumber is proportional to the force constant. The B-H bond energy of 389 kJ/mol in comparison to the bond energy of 402 kJ/mol of Ga-Br shows that this difference in frequency is observed due to the difference in mass.

The A2’’ umbrella motion corresponds to a frequency of 100 cm-1 with an intensity of 9 for gallium(III) bromide. The umbrella motion of borane appears at a higher frequency of 1163 cm-1 with a stronger intensity of 93. The difference in intensity is observed due to a difference in the strength of the dipole moment change.

The displacement vectors show the central Ga atom is moving in gallium(III) bromide whereas it is the H atoms that are displaced in the borane molecule. This difference in the nature of the vibration is due to differences in mass. Gallium is heavier than bromine so has a larger displacement than bromine. On the other hand, the hydrogen atoms in borane are lighter than the central boron atom so it is the hydrogen that have a greater displacement in the borane molecule.

Frequency analysis in Gaussian

The basis set is a set of functions used in a linear combination of atomic orbitals to compute molecular orbitals to describe the electron density within the molecule. The basis set consists of a particular number and type of functions. A geometry optimisation carried out with a particular basis set will give the lowest energy structure for the basis set specified. A frequency calculation can be carried out to give the vibrational modes for the structure at equilibrium. Using a different basis set to carry out the frequency calculation will result in a different set of functions being used to approximate the molecular orbitals and electron density within the molecule. This means that there will be a difference in energies and vibrational frequencies calculated for the same structure with different basis sets.

A frequency calculation gives the frequencies and intensity of vibrational modes of a molecule at equilibrium. This data can be used to compute an IR spectrum.

The “low frequencies” found from a frequency calculation correspond to the rotations and translations of the molecule. For a non-linear molecule, there will be 3N-6 vibrational modes. The six frequencies taken away are these frequencies corresponding to rotations and translations of the centre of mass of the molecule.

Molecular orbital analysis for BH₃

BH₃:B3LYP/6-31G(d,p)

Checkpoint file: DOI:10042/146710

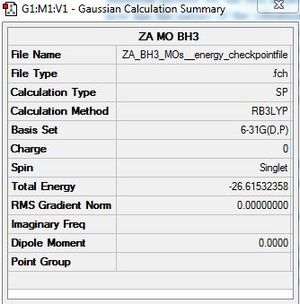

summary data	Molecular orbitals

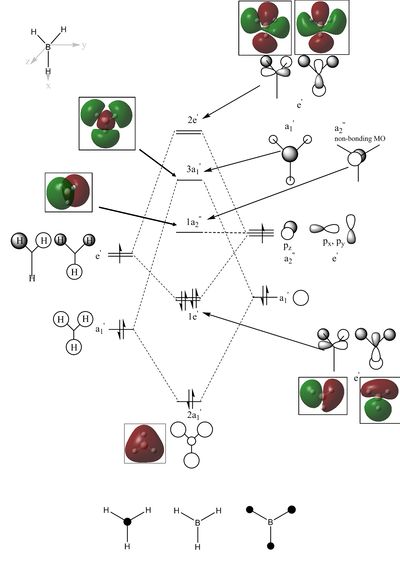

The diagram shows the molecular orbital diagram of borane produced from the LCAO and the corresponding computed molecular orbitals. The computational analysis shows the 1s atomic orbital of boron at a lower energy of -6.77. This is molecular orbital is not drawn in the LCAO MOs.

The computed molecular orbitals of three occupied molecular orbitals, 2a1’ and the two degenerate 1e’, show good agreement with molecular orbitals formed using the LCAO method. It can be seen from the computed molecular orbitals that the electron density is within the regions shown by the LCAO molecular orbitals. The LCAO 2a1’ molecular orbital shows the molecular orbital as consisting of localised 1s orbitals on the hydrogen and boron atoms with a greater contribution on the hydrogen. However, the computed 2a1’ shows the electron density spread over the whole molecule. Likewise the shape of the computed 1e’ do not correspond to localised 1s and 2p orbitals but show a shape that corresponds to an overlap of s and p orbitals. The computed non-bonding a2’’ molecular orbital looks like a pz orbital. However, the electron density is spread across the whole molecule with a nodal plane along the y axis rather than being localised at the boron atom. The 3a1’ shows electron density within the same regions of the molecule as that predicted by the LCAO 3a1’ molecular orbital. However, the orbital contributions are slightly different. There are greater contributions on the hydrogen atoms than is shown in the LCAO molecular orbital. The LCAO 3a1’ molecular orbital shows greater electron density on the boron atom than the hydrogen atoms however, the computed molecular orbital shows electron density is much more significant on the hydrogen than shown in the LCAO molecular orbital. It is difficult to assign the final two computed molecular orbitals to those of the remaining LCAO molecular orbitals. One of the LCAO 2e’ molecular orbital shows the electron density localised on boron and two of the hydrogen atoms whilst the other shows electron density on all three hydrogen atoms and the boron atom. The computed molecular orbitals show the electron density is spread across all three hydrogen atoms and the boron atom. Overall, there is a good agreement between computed molecular orbitals and those formed from LCAO approximations.

Optimisation of NH₃

B3LYP/6-31G (d,p) level

Optimisation log file here

summary data	convergence	Jmol
	Item Value Threshold Converged? Maximum Force 0.000006 0.000450 YES RMS Force 0.000004 0.000300 YES Maximum Displacement 0.000012 0.001800 YES RMS Displacement 0.000008 0.001200 YES Predicted change in Energy=-9.843957D-11	optimised BH3 molecule

NH₃:B3LYP/6-31G(d,p)

B3LYP/6-31G (d,p) level

Frequency file: File:ZA NH3 FREQ output.log

summary data	low modes
	Low frequencies --- -0.0129 -0.0022 -0.0017 7.0722 8.1014 8.1017 Low frequencies --- 1089.3849 1693.9369 1693.9369

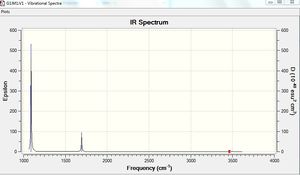

Vibrational spectrum for NH₃

wavenumber	Intensity	IR active?	type
1089	145	yes	bend
1694	14	yes	bend
1694	14	yes	bend
3461	1	yes	stretch
3590	0	no	stretch
3590	0	no	stretch

|

The results show there are six vibrations. However, only three peaks are observed in the IR spectrum. The vibration must result in a change in dipole moment for it to be IR active. The bends corresponding to frequencies of 1163, 1213 and 2716 cm-1 are antisymmetric thus, result in a change in dipole moment and are therefore IR active. On the other hand, the vibration of frequency 2583 cm-1 does not result in a change in dipole moment as the stretch is symmetric.

Molecular orbital analysis for NH₃

NH₃:B3LYP/6-31G(d,p)

Checkpoint file: DOI:10042/147305

summary data	Molecular orbitals
File:ZA NH3 energy pop outputCHK SUMMARYTABLE.JPGG

Charge Distribution within NH₃:B3LYP/6-31G(d,p)

|

Red indicates a partial negative charge. Nitrogen is more electronegative than the hydrogen atoms therefore is red and the green colour of the hydrogen indicates a partial positive charge. Charge range: -1.125 to +1.125

Specific NBO charges within NH₃:B3LYP/6-31G(d,p)

|

Optimisation of NH₃BH₃

B3LYP/6-31G (d,p) level

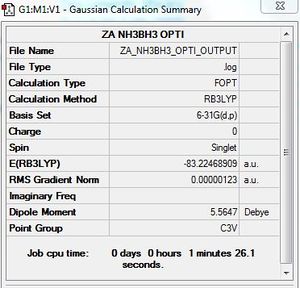

Optimisation log file File:ZA NH3BH3 OPTI OUTPUT.rtf

summary data	convergence	Jmol
	Item Value Threshold Converged? Maximum Force 0.000002 0.000015 YES RMS Force 0.000001 0.000010 YES Maximum Displacement 0.000023 0.000060 YES RMS Displacement 0.000010 0.000040 YES Predicted change in Energy=-8.849071D-11	optimised BH3 molecule

NH₃:B3LYP/6-31G(d,p)

B3LYP/6-31G (d,p) level

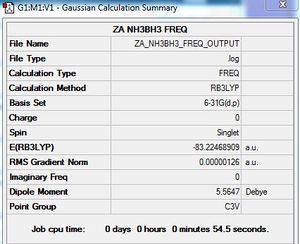

Frequency file: File:ZA NH3BH3 FREQ OUTPUT.log

summary data	low modes
	Low frequencies --- -5.5831 -0.3050 -0.0444 0.0008 1.2174 1.2901 Low frequencies --- 263.2843 632.9623 638.4603

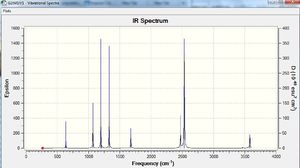

Vibrational spectrum for NH₃BH₃

wavenumber	Intensity	IR active?	type
263	0	no	twist
633	14	very slight	stretch
638	4	very slight	bend
638	4	very slight	bend
1069	41	yes	bend
1069	41	yes	bend
1196	109	yes	bend
1204	3	very slight	bend
1204	3	very slight	bend
1329	114	yes	bend
1676	28	yes	bend
1676	28	yes	bend
2472	67	yes	stretch
2532	231	yes	stretch
2532	231	yes	stretch
3464	3	extremely slight	stretch
3581	28	yes	stretch
3581	21	yes	stretch

|

The results show there are eighteen vibrations. However, only nine bands are observed. This is due to the twist at 263 cm^-1 being IR inactive as it does not result in a change in dipole moment. The degenerate vibrations at 638, 1069, 1676, 2532 and 3581 cm^-1 appears one peak for each of the two degenerate vibrations. Peaks at 633 and 1203 cm^-1 that are not observed on the spectrum due to their low intensity.

Comparison of energies of NH₃BH₃ molecule and NH₃ - BH₃ fragements

E(BH₃) = -26.6153236 a.u

E(NH₃) = -56.5577687 a.u

Energy of association of acid-base pair:

ΔE=E(NH3BH3)-[E(NH3)+E(BH3)] = -135.47 kJ/mol

By comparison with the strongest known covalent bond, the N₂ triple bond, the association of ammonia and borane is weak. It is however, stronger than a weak bond. It would be classed as a medium strength bond.

Optimisation of AlCl₄Br₂

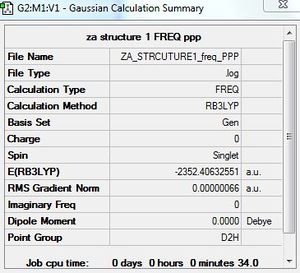

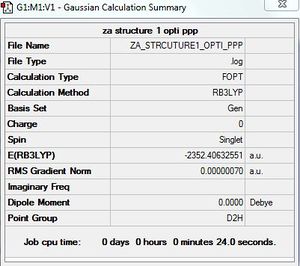

AlCl₄Br₂ - Isomer 1

Symmetry of isomer 1 - D_2h

B3LYP/Al 6-31G, Cl 6-31G, Br LANL2DZ

Optimisation log file here

summary data	convergence	Jmol
	Item Value Threshold Converged? Maximum Force 0.000002 0.000015 YES RMS Force 0.000001 0.000010 YES Maximum Displacement 0.000043 0.000060 YES RMS Displacement 0.000016 0.000040 YES Predicted change in Energy=-1.794814D-12	optimised Isomer 1

B3LYP/GEN level

Frequency file: here

summary data	low modes
	Low frequencies --- -0.8495 -0.0029 -0.0027 -0.0024 1.2778 1.3918 Low frequencies --- 16.0699 63.6253 86.1141

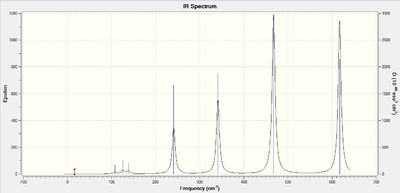

Vibrational spectrum for AlCl₄Br₂ - Isomer 1

wavenumber	Intensity	IR active?	type
16	0	no	Al-Cl bend	Al-Br bend
64	0	no	Al-Cl bend	Al-Br no vibration
86	0	no	Al-Cl bend	Al-Br bend
87	0	no	bend
108	5	yes	bend
111	0	no	bend
126	8	yes	bend
135	0	no	bend
138	7	very slight	bend
162	0	no	bend
197	0	no	bend
241	100	yes	bend
247	0	no	bend
341	161	yes	DSFKJGHSDKGHDSKJFGHDKJSFGHDSKFGHDKJSGHSKDFHG
468	346	yes	bend
494	0	no	bend
609	0	no	bend
617	332	yes	bend

|

The computed IR spectrum shows seven bands. However, there are eighteen vibrational modes. Only seven bands are observed due to eleven modes being IR inactive. The IR inactive vibrations are inactive as they do not result in an overall change in dipole moment.

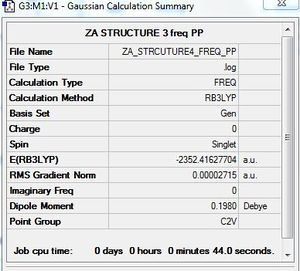

AlCl₄Br₂ - Isomer 2

Symmetry of isomer 2 - C_2h

B3LYP/GEN level

Optimisation log file here

summary data	convergence	Jmol
	Item Value Threshold Converged? Maximum Force 0.000020 0.000450 YES RMS Force 0.000008 0.000300 YES Maximum Displacement 0.000243 0.001800 YES RMS Displacement 0.000096 0.001200 YES Predicted change in Energy=-7.655364D-09	optimised Isomer 2

B3LYP/GEN level

Frequency file: here

summary data	low modes
	Low frequencies --- -1.5733 -1.3897 -0.2647 -0.0033 -0.0025 -0.0023 Low frequencies --- 18.2042 49.1393 72.8927

Vibrational spectrum for AlCl₄Br₂ - Isomer 2

wavenumber	Intensity	IR active?	type
18	0	no	bendxcvxcvxcv
49	0	noxcvxcvxcv	bendxcvxcvxcv
73	0	nocxvxvxcv	bendxcvxcvxcv
105	0	no xcvxcv	bendxcvxcv
109	0	yesxcvxvxc	bendxcvxcvxcvxcv
117	9	nocvbcvb	bendvcbcvb
119	13	yescvbcvb	bendcvbcvb
157	0	no	bendvcbcvbcvb
159	6	very slightxcvxczvzxcv xcv	bendxczvxzcvxcv
192	0	no	bendcvbcvb
263	0	no	benddfgdsgf
280	29	yesfdzg	bendgfdfg
308	0	no	bendfdgdfg
413	149	yesgfdgdfgdfg	dzfgdsfgsdfg
421	438	yesgh	bendgsfhfdghfdhdfghfdgh
459	0	no	benddfgdsgfsdf
575	0	no	benddfgdsfgsdfg
580	316	yes	benddsfdsafasdfadsf

|

As with isomer 1, the IR spectrum does not show peaks corresponding to all of the observed vibrations. This is due to IR inactive vibrations not being observed. There are also bands very similar in frequency. This results in the relatively low intensity bands appearing as one peak. For example, the peaks at 117 and 119 cm^-1.

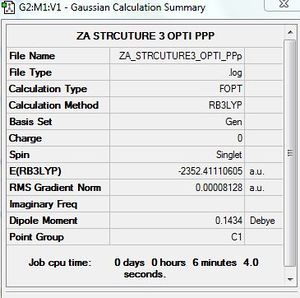

AlCl₄Br₂ - Isomer 3

Symmetry of isomer 3 - C₁

B3LYP/GEN level

Optimisation log file here

summary data	convergence	Jmol
	Item Value Threshold Converged? Maximum Force 0.000159 0.000450 YES RMS Force 0.000050 0.000300 YES Maximum Displacement 0.000452 0.001800 YES RMS Displacement 0.000187 0.001200 YES Predicted change in Energy=-5.937165D-08	optimised Isomer 3

B3LYP/GEN level

Frequency file: here

summary data	low modes
	Low frequencies --- -1.5733 -1.3897 -0.2647 -0.0033 -0.0025 -0.0023 Low frequencies --- -1.4179 -0.0032 -0.0026 -0.0008 1.3075 2.8005 Low frequencies --- 17.0008 55.9563 80.0686

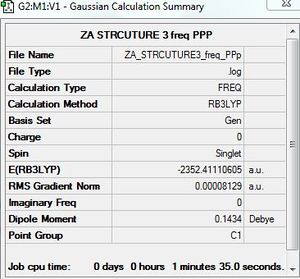

Vibrational spectrum for AlCl₄Br₂ - Isomer 3

wavenumber	Intensity	IR active?	type
17	0	no	bendxcvxcvxcv
56	0	no	bendxcvxcvxcv
80	0	no	bendxcvxcvxcv
92	1	no	bendxcvxcv
107	0	no	bendxcvxcvxcvxcv
110	5	nocvbcvb	bendvcbcvb
121	8	yescvbcvb	bendcvbcvb
149	5	no	bendvcbcvbcvb
154	6	very slightxcvxczvzxcv xcv	bendxczvxzcvxcv
186	0	no	bendcvbcvb
211	20	novcbcvb	benddfgdsgf
257	10	yesfdzg	bendgfdfg
289	49	nohjm,bm,	bendfdgdfg
385	152	yesgfdgdfgdfg	dzfgdsfgsdfg
423	275	yesgh	bendgsfhfdghfdhdfghfdgh
493	275	nonmb,	benddfgdsgfsdf
575	122	no	benddfgdsfgsdfg
615	197	yes	benddsfdsafasdfadsf

|

The IR spectrum does not show peaks corresponding to all of the eighteen calculated vibrations. 12 peaks are observed. This is due to the first five vibrations and the vibration corresponding to 186 cm^-1 being IR inactive. These vibrations do not result in a change in dipole moment.

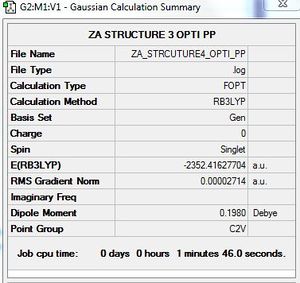

AlCl₄Br₂ - Isomer 4

Symmetry of isomer 4 - C_2v

B3LYP/GEN level

Optimisation log file here

summary data	convergence	Jmol
	Item Value Threshold Converged? Maximum Force 0.000043 0.000450 YES RMS Force 0.000025 0.000300 YES Maximum Displacement 0.001737 0.001800 YES RMS Displacement 0.000538 0.001200 YES Predicted change in Energy=-9.903822D-08	optimised Isomer 4

B3LYP/GEN level

Frequency file: here

summary data	low modes
	Low frequencies --- -1.9412 -1.6179 0.0037 0.0042 0.0043 1.1453 Low frequencies --- 17.4819 51.0454 78.6308

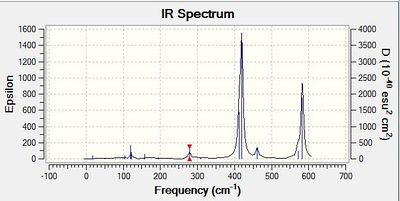

Vibrational spectrum for AlCl₄Br₂ - Isomer 4

wavenumber	Intensity	IR active?	type
17	0	no	bendxcvxcvxcv
51	0	no	bendxcvxcvxcv
79	0	no	bendxcvxcvxcv
99	0	no	bendxcvxcv
104	3	nobmbnmvbnm	bendxcvxcvxcvxcv
121	13	nocvbcvb	bendvcbcvb
122	6	yescvbcvb	bendcvbcvb
157	0	no	bendvcbcvbcvb
158	5	very slightxcvxczvzxcv xcv	bendxczvxzcvxcv
194	1	no	bendcvbcvb
264	0	novcbcvb	benddfgdsgf
278	26	yesfdzg	bendgfdfg
308	2	nohjm,bm,	bendfdgdfg
413	149	yesgfdgdfgdfg	dzfgdsfgsdfg
461	36	yesgh	bendgsfhfdghfdhdfghfdgh
571	34	nonmb,	benddfgdsgfsdf
583	276	no	benddfgdsfgsdfg
615vbxvb	197cvbxcvb	yescvbxcvb	benddsfdsafasdfadsf

|

The IR spectrum does not show peaks corresponding to all of the eighteen calculated vibrations. Six peaks are observed. This is due to seven IR inactive vibrations (intensity 0). Also, three low intensity vibrations do not have a corresponding peak on the IR spectrum. The low intensity of these peaks is due to the change in dipole moment being relatively weak.

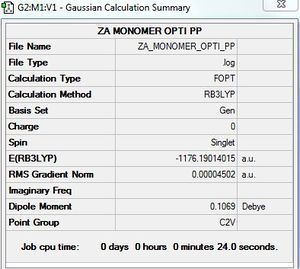

AlBrCl₂ monomer: B3LYP/GEN

B3LYP/GEN level

Optimisation log file here

summary data	convergence	Jmol
	Item Value Threshold Converged? Maximum Force 0.000149 0.000450 YES RMS Force 0.000078 0.000300 YES Maximum Displacement 0.000751 0.001800 YES RMS Displacement 0.000541 0.001200 YES Predicted change in Energy=-9.241407D-08	optimised monomer

B3LYP/GEN level

Frequency file: here

summary data	low modes
	Low frequencies --- -0.0035 -0.0035 -0.0019 3.3756 3.6552 4.1209 Low frequencies --- 120.7185 133.9343 185.8750

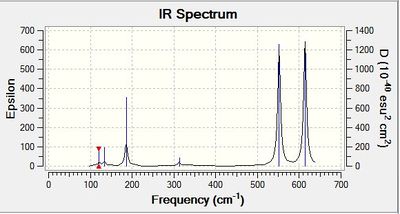

Vibrational spectrum for AlBrCl₂ monomer

wavenumber	Intensity	IR active?	type
17	0	no	bendxcvxcvxcv
51	0	no	bendxcvxcvxcv
79	0	no	bendxcvxcvxcv
99	0	no	bendxcvxcv
104	3	nobmbnmvbnm	bendxcvxcvxcvxcv
121	13	nocvbcvb	bendvcbcvb
122	6	yescvbcvb	bendcvbcvb
157	0	no	bendvcbcvbcvb
158	5	very slightxcvxczvzxcv xcv	bendxczvxzcvxcv
194	1	no	bendcvbcvb
264	0	novcbcvb	benddfgdsgf
278	26	yesfdzg	bendgfdfg
308	2	nohjm,bm,	bendfdgdfg
413	149	yesgfdgdfgdfg	dzfgdsfgsdfg
461	36	yesgh	bendgsfhfdghfdhdfghfdgh
571	34	nonmb,	benddfgdsgfsdf
583	276	no	benddfgdsfgsdfg
615vbxvb	197cvbxcvb	yescvbxcvb	benddsfdsafasdfadsf

| The results show there are EIGHTEEN vibrations.

Energy of AlBr₂ Cl₄ isomers

Table 1 - relative energies of four isomers

Isomer in order of stability	Energy (a.u)	Relative energy (kJ/mol)
2 (most stable)	-2352.4162997	Reference
4	-2352.4162770	0.06
3	-2352.4111061	13.64
1 (least stable)	-2352.4063255	26.19

The lowest energy isomer is isomer 2. In this conformer, the Br atoms are in the terminal position and trans to each other. This orientation of the Br eliminates steric hindrance between them. As they are the largest atoms, reducing steric hindrance between them results in a large stabilisation of this conformer relative to the other isomers. The distance between the Br atoms is 6.77 A. This is larger than twice the van der Waals radius of Br (3.80 A). This indicates there are no steric clashes between the Br atoms.

The next most stable conformer is that of isomer 4. Orientating the Br atoms cis to each other results in the two atoms being closer together than the Br atoms of isomer 2. This could result in the small destabilisation due to steric clashes. The differences between the distances between the terminal Br atom and terminal Cl atom and the terminal Br atom and bridging Cl atom are very small. Likewise, the deviation between bond angles between the terminal Br-Al-bridging Cl and the terminal Br-Al-terminal Cl is also small. Hence, the steric repulsions with the Cl atoms does not account for the small destabilisation of isomer 4 relative to isomer 2.

Isomer 3 is less stable than isomer 2. The distance of 3.33 A between the Br atoms is much shorter than that between the Br of isomer 2. This suggests there is greater steric repulsion between the Br atoms in isomer 3 hence, it is less stable. This is confirmed by comparison with the van der Waals radii of Br. The distance of 3.33 A is less than the combined van der Waals radius of 3.80 A. This suggests the two Br atoms are close enough to have repulsive interactions. The bond angle of 109.5o between the terminal Br-Al-terminal Cl is smaller in isomer 3 than the angle of 121.5o in isomer 2. Greater steric hindrance between the terminal Br and terminal Cl will be present in isomer 3. The distance of 3.41 A between this terminal Br and terminal Cl in isomer 3 is less than the distance of 3.81 A between them in isomer 2. The combined van der Waals radii of Cl and Br is 3.65 A. The Br and Cl atoms are closer than the van der Waals radii in isomer 3 whereas they are further than the van der Waals radii in isomer 2. The greater steric clashes of the terminal Br and terminal Cl in isomer 3 could also contribute to the destabilisation of this conformer relative to that of isomer 2.

The least stable conformer is that of isomer 1. Having the two Br atoms in the bridging position results in the distance between them being much smaller than the distance between them in isomer 2. The two Br atoms are 3.57 A apart. This is closer than the combined van der Waals radii of 3.8 A. This suggests there will be steric hindrance between the two atoms. The Al-Br-Al bond angle is much smaller than the Al-Cl-Al bond angle of isomer 2.

Comparison of the four isomers shows the conformers in which the Br are terminal are more stable than when Br is in the bridging position.

Dissociation energy of isomer 2 into monomer

The dissociation energy was calculated for the lowest energy isomer into 2 AlBrCl₂ monomers.

E(AlCl2Br monomer) = -1176.1901402 a.u

E(2AlCl2Br isomer 2) = -2352.4162997 a.u

ΔE = -0.0360194 a.u. = -94.57 kJ/mol

The product is more stable than the isolated monomers.

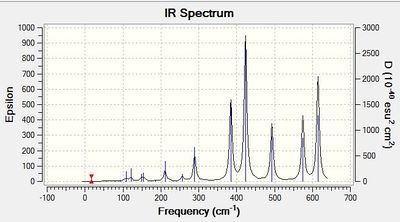

Comparison of IR spectra of isomers

The symmetry of the conformer determines the number of IR bands observed in the IR spectrum. The point group of the conformer can be used to determine the IR active normal modes using their symmetry labels. Normal modes with symmetry label corresponding to the x, y or z axes will be IR active. Isomer 3 has the greatest number of bands in the computed IR spectrum. This conformer only has a C1 rotational axis. As it is not a symmetric molecule, it will have the greatest number of bends and stretches resulting in a change in dipole moment and therefore, the greatest number of IR active vibrational modes.

IR active bands

Molecules can undergo vibrational excitation when a certain frequency of light corresponding to the energy gap between the quantised vibrational energy levels is absorbed. In IR spectroscopy, a beam of polychromatic light is passed through the sample and the intensity of the transmitted light is detected. The transmission is used to obtain the frequencies at which the molecule absorbs light and is vibrationally excited. For a vibrational transition to be IR active, the vibration on absorption of IR light must result in a change in electric dipole moment of the molecule. Interactions of the oscillating electric field with the changing dipole moment will result in excitation to a higher energy vibrational mode if the frequency of radiation corresponds to vibrational frequency of the molecule.

Comparison of terminal and bridging stretches

The Al-Br asymmetric stretch at 341 cm-1 for isomer 1 can be compared to the asymmetric stretch at 385 cm-1 of isomer 3. Swapping one of the Br atoms from the bridging position to the terminal position results in an increase in vibrational frequency. This is due to the reduction in mass upon changing from bromine to chlorine. The reduced mass is inversely proportional to the vibrational frequency thus, an increase is seen. The increase in wavenumber could also be due to an increase in bond strength. Aluminium and chlorine are in the same row of the Periodic Table therefore, there will be a better overlap of the 3p orbitals of the Al and Cl than the 3p of Al and 4p of Br. This could result in a stronger bond being formed to Cl and hence, increase the vibrational frequency upon substituting the bridging Br for a bridging Cl. A further increase in vibrational frequency is observed on changing the remaining bridging Br atom to another bridging Cl atom as in isomers 2 and 4. This is due to a further decrease in mass.

The vibrational frequency for this mode does not change dramatically between the cis and trans arrangements of the terminal Br atoms. The vibration occurs as a result of the stretching of bridging bonds thus, changing the arrangement of the Br atoms in the terminal positions will not make a difference to the vibrational frequency.

The terminal Al-Cl stretch can be compared for the four isomers. Isomer 1 has four terminal Al-Cl bonds with a stretching frequency of 617 cm-1. On changing one of the terminal Cl to a terminal Br, the stretching frequency of the bond decreases to 614 cm-1. This decrease in vibrational frequency is due to an increase in the reduced mass of the bond. However, the vibration is dominated by the Al-Cl vibration. The Al-Br stretch is relatively small. Therefore, only a small decrease is observed. A greater decrease is observed when there are two terminal Al-Br bonds as in isomers 2 and 4. A decrease from 614 cm-1 to 580 cm-1 is seen due to a greater effect of the reduced mass. The vibration of two bonds is reduced due to increasing the mass of the atom involved in the stretch. This has a larger effect on the vibrational frequency.

Analysis of occupied non-core molecular orbitals of isomer 2

Non-core orbital 46

Bonding interactions (2) There is a long range, in phase, bonding interaction between the p like orbitals localised on terminal Cl and Br atoms orientated cis to each other. The interactions occur through space, over a long distance. Therefore, this is a weak bonding interaction. (4) There is a short range, in phase, bonding interaction between the two p orbitals localised on bridging Cl atoms. This resembles a pi type interaction however, cannot be classified as a pi bond as the electron density is localised at the two Cl atoms and not between them. Also, optimisation of the structure shows the two Cl atoms are not actually bonded. This interaction occurs over a smaller distance than interaction (2) therefore, it will be a strong interaction.

Antibonding interactions (1) There is a long range, out of phase, antibonding interaction through space between the p like orbitals localised on the terminal Cl and Br atoms. This interaction will be stronger than interaction (2) are closer together with a distance of 3.81 angstroms compared to 5.81 between the atoms of orbitals in interaction (2). (3) There is a through space, out of phase interaction between the alternate lobes of the p orbitals in interaction (1). This interaction will be stronger than interaction (1) as the lobes are closer together. This is a very strong antibonding interaction. (5) There is a short range, out of phase, antibonding interaction through space between the p like orbitals of the bridging and terminal Cl. The distance between these atoms of 3.59 angstroms is shorter than the distance of 3.75 angstroms between the bridging Cl and terminal Br. Therefore, this will be a stronger antibonding interaction. (6) There is a short range, out of phase, antibonding interaction between the p like orbitals of the bridging Cl and the terminal Br. This interaction is weaker than interaction (5).

Overall, although this molecular orbital has a greater number of antibonding than bonding interactions, it is a non-bonding molecular orbital. This is because the orbitals observed are localised on the halogens and appear to be p like orbitals. It is possible that these are the lone pairs of the halogens. Hence, the overall molecular orbital will not be classified bonding molecular orbitals.

Non-core orbital 46

Bonding interactions (1) There is a through space, in phase, bonding interaction between the p like orbitals on the bridging and terminal Cl atoms. The distance of 3.59 angstroms is relatively large compared to the distance between the two bridging Cl atoms therefore, the bonding interaction is weak.

Antibonding interactions (2) There is a through space, out of phase, antibonding interaction between the orbitals on the bridging Cl atoms. The orbital contributions of these orbitals is large in comparsion to orbitals of the terminal Cl atoms. The atoms are also closer together than the atoms of interation (1). Therefore, this antibonding interaction will be strong.

Overall, this molecular orbital is antibonding as antibonding interactions are stronger than bonding interactions.

Non-core orbital 38

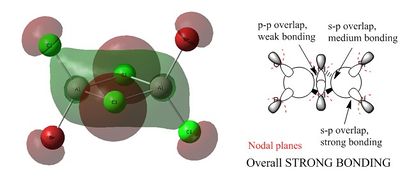

The p orbitals of the halogens and the aluminium atoms result in formation of a large cloud of electron density across the four membered ring. The red lobes indicate the lobe of the p orbitals that does not form part of the electron cloud. The arrows 1, 2 and 3 show the contribution of the p orbital to the bonding region of the molecular orbital. This orbital is strongly bonding compared to orbitals 46 and 44.

Non-core orbital 37

Bonding interactions (2) There is a through space, in phase, bonding interaction between the terminal bromine and chlorine atoms. This interaction is quite weak due to the long distance of 3.81 angstroms between the atoms.

Antibonding interactions (1) There is a through space, out of phase, antibonding interaction between the terminal halogens. This interaction is weak in comparison to interaction (2) as the distance between the atoms is larger. This is therefore a very weak interaction. (4) (5) There is an along bond, out of phase, antibonding interaction between the terminal halogens and the region of delocalised electron density across the Cl-Al-Cl bridge. As this is along a bond, this will be a very strong antibonding interaction. (3) There is a through space, out of phase, antibonding interaction between the electron clouds on the four membered ring. This will be a very strong antibonding interaction as there is a large concentration of electron density within the two regions of opposite phase. They are also very close together, therefore this interaction is the strongest.

Overall, this molecular orbital is antibonding due to the presence of stronger antibonding interactions.

Non-core orbital 31

This orbital is a strongly bonding interaction of delocalised s orbitals primarily from the bridging chlorine atoms. A small part of the electron density has spread across onto the terminal chlorine atoms. This could mean the that the terminal chlorine atoms are contributing to the molecular orbital. There are no antibonding interactions therefore, this is the most bonding orbital of the five analysed.

Conclusion

Four isomers of AlBr₂Cl₄ were optimised to find the lowest energy conformer. This was found to be the conformer in which the two Br atoms were terminal and trans to each other. Frequency analysis was carried out to determine the IR spectra of each conformer. The difference between IR spectra were attributed to the difference in symmetry of the conformers resulting in a change in the symmetry of vibrational modes. Similar vibrational modes of the conformers were compared to determine what causes a change in value of the wavenumber of similar modes. The change in wavenumber is due to the changing of bond strength and mass. Molecular orbitals were computed for the lowest energy conformer. A difference in energy was observed between the core and non core orbitals of the isomer.
