NH₃ Molecule

NH3
Molecule name	Ammonia
calculation method	RB3LYP
basis set	6-31G(d,p)
final energy E in atomic units	-56.55776873
point group	C3V

NH3

NH₃ log file

Vibrational modes of NH₃

N2

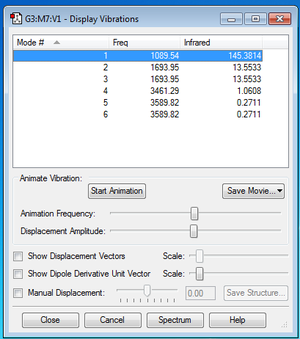

Mode #	Frequency	IR
1	1090	145
2	1694	14
3	1694	14
4	3461	1
5	3590	0
6	3590	0

Mode 1

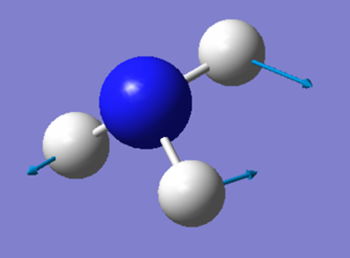

Mode 2

Mode 3

Mode 4

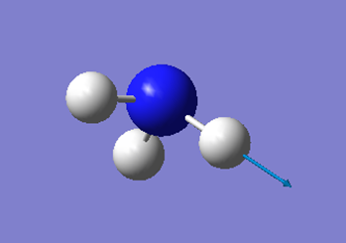

Mode 5

Mode 6

From the 3N-6 rule 6 vibrational modes are expected.

Modes 2 and 3 and modes 5 and 6 are degenerate.

Modes 1,2 and 3 are bond bends and modes 4,5 and 6 are bond stretches.

Mode 4 is highly symetrical as its a symerical stretch of all bonds.

Mode 1 is called umbrella mode.

2 bands are expected in the vibrational spectrum of Ammonia as it has 2 IR active vibrational modes at different frequencies.

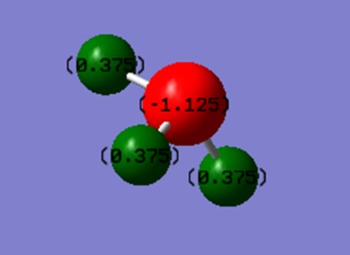

Partial atomic charges on NH₃

Nitrogen has a higher electronegativity than Hydrogen so we would expect it to be partially negative and Hydrogen partially possitive. Also Nitrogen is bonded to 3 Hydrogen atoms so the negative charge on the nitrogen must be 3 times greater than the possitive charge on each hydrogen atom

N₂ Molecule

N2
Molecule name	Nitrogen
calculation method	RB3LYP
basis set	6-31G(d,p)
final energy E in atomic units	-109.52412868
point group	D∞h

N2

N₂ log file

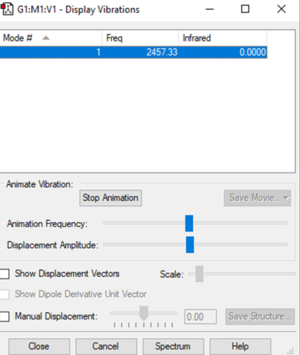

Vibration of N₂

N₂ is a diatomic linear molecule so we expect 1 vibrational mode according to the 3N-5 rule which is what we expect.

Nitrogen is only bonded to another nitrogen atom. They have the same electronegative so there are no partial charges or overall dipole

H₂ Molecule

N2
Molecule name	Hydrogen
calculation method	RB3LYP
basis set	6-31G(d,p)
final energy E in atomic units	-1.17853936
point group	D∞h

H2

H₂ log file

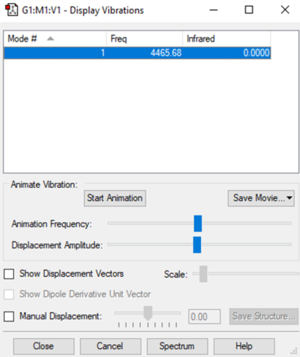

Vibration of H₂

Like N₂ H₂ is also diatomic and linear so has 1 vibrational mode.

It also has no partial charges for the same reason as nitrogen

H₂ complex

[(σ2-Dihydrogen)-tricarbonyl-bis(tri-isopropylphosphine)-tungsten] is a crystal that complexes tungsten with hydrogen. H₂'s coordination number is 2. The crystal's unique identifier is CEJDEA. The H-H bond length found in the H2 molecule is 0.74Å and the H-H bond length found on the complex is 0.76Å. This difference might be due to the fact that H₂ only has 2 electrons which are in the H-H bond so when it complexes the bond could loose strength. Another possible reason for this difference is that the bond length in the H₂ molecule was found running an optimisation and the bond length in the H2 complex was obtained from a reported structure.

Energy for the synthesis of ammonia

N2 + 3H2 -> 2NH3
E(NH3)	-56.55776873
2*E(NH3)	−113.1155375
E(N2)	-109.52412868
E(H2)	-1.17853936
3*E(H2)	−3.53561808
ΔE(Atomic units)	−0.05579074
ΔE(kJmol-1)	−146.4785879

The process is exothermic so the ammonia product is more stable than the gaseous reactants

CO₂ molecule

CO2
Molecule name	Carbon dioxide
calculation method	RB3LYP
basis set	6-31G(d,p)
final energy E in atomic units	-188.58093945
point group	D∞h

CO2

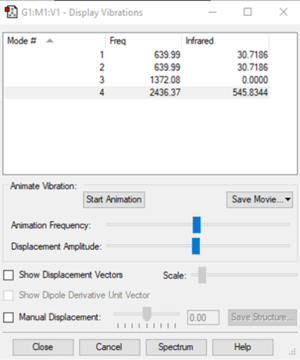

CO₂ log file Vibration_CO2_FV.png

Vibrational modes of CO₂

CO2
Mode #	Frequency	IR
1	640	31
2	640	31
3	1372	0
4	2436	546

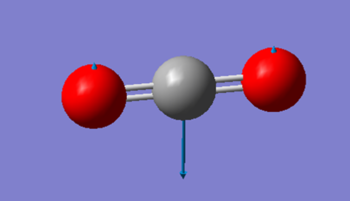

Mode 1

Mode 2

Mode 3

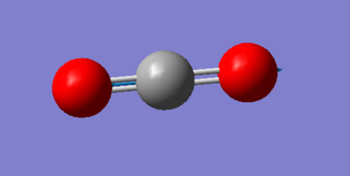

Mode 4

From the 3N-5 rule 4 vibrational modes are expected.

Modes 1 and 2 degenerate.

Modes 1 and 2 are bond bends and modes 3 and 4 are bond stretches.

Mode 3 is highly symetrical as its a symerical stretch.

2 bands are expected in the vibrational spectrum of carbon dioxide as it has vibrational 2 IR active modes at different frequencies.

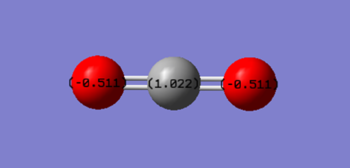

Partial atomic charges on CO₂

Although CO₂ has no overall dipole the C=O bonds are polar. Oxygen is more electronegative than carbon so the oxygen atoms have a partial negative charge and the carbon atom has a positive charge 2 times larger than the negative charge on the oxygen atoms.

Molecular orbitals of CO₂

The energy in a molecular orbital depends on 2 factors. How strong the overlap between the orbitals is and how many nodes there are. Molecular orbitals 2, 4, 5, 6 and 7 of CO₂ are shown as they illustrate very clearly the effect of both of these factors. Despite having one node, MO2 is much lower in energy than MO4 which has no nodes. This is due to the strong overlap between the atomic orbitals used to form the molecular orbitals (the pictures are to a different scale so the overlap is weaker in MO4 than it looks). Molecular orbitals 4, 5, 6, and 7 show how an increasing number of nodes increases the energy .

MO2

MO4

MO5

MO6

MO7
