NH3 molecule
Information of NH3
| Name | NH3 |
| Calculation type | FREQ |
| Calculation title | RB3LYP |
| Basis set | 6-31G(d,p) |
| E9RB3LYP) | -56.5577687 a.u. |
| RMS gradient | 0.00000485 a.u. |
| Point group | C3V |
optimisation of NH3
| Bond length | 1.07198 |
| Bond angle | 105.741 |
Item Table
Item Value Threshold Converged?
Maximum Force 0.000004 0.000450 YES
RMS Force 0.000004 0.000300 YES
Maximum Displacement 0.000072 0.001800 YES
RMS Displacement 0.000035 0.001200 YES
Predicted change in Energy=-5.986357D-10
Optimization completed.
-- Stationary point found.
----------------------------
! Optimized Parameters !
! (Angstroms and Degrees) !
-------------------------- --------------------------
! Name Definition Value Derivative Info. !
--------------------------------------------------------------------------------
! R1 R(1,2) 1.018 -DE/DX = 0.0 !
! R2 R(1,3) 1.018 -DE/DX = 0.0 !
! R3 R(1,4) 1.018 -DE/DX = 0.0 !
! A1 A(2,1,3) 105.7412 -DE/DX = 0.0 !
! A2 A(2,1,4) 105.7412 -DE/DX = 0.0 !
! A3 A(3,1,4) 105.7412 -DE/DX = 0.0 !
! D1 D(2,1,4,3) 111.8571 -DE/DX = 0.0 !
--------------------------------------------------------------------------------
Jmol Dynamic Range
test molecule |
You can find the optimised in the link:Media:Yq5118_NH3_OPTIMISATION.LOG
Vibration of NH3
basic information of NH3 vibration
some other information of NH3 vibration
According to 3N-6 rule, there should be 6 vibration modes.
Mode2 and mode3;mode5 and mode6 have the same energies, thus they are degenerate states.
Modes 1,2,3 are "bending" vibrations and modes 4,5,6 are "bond stretch" vibrations.
Modes 1 and 4 are highly symmetric.
Mode1 is known as the "umbrella" mode.
Four bands are expect to be seen in an experimental spectrum of gaseous ammonia
vibration mode
| Wavenumber
cm-1 |
1090 | 1694 | |
| Symmetry | A1 | E | |
| Intensity
arbitrary units |
145.4 | 13.55 | |
| Image |
|
|
| Wavenumber
cm-1 |
1694 | 3461 | |
| Symmetry | E | A1 | |
| Intensity
arbitrary units |
13.55 | 1.061 | |
| Image |
|
|
| Wavenumber
cm-1 |
3590 | 3590 | |
| Symmetry | E | E | |
| Intensity
Arbitrary units |
0.271 | 0.271 | |
| Image |
|
|
Charge Distribution
Since the nitrogen has higher electronegativity than hydrogen, so the electron pair in the bond is attracted more to the nitrogen. This results in the negative charge in N-atom and positive charge in H-atom. So the red atom is N-atom and has a charge of -1.125. The green atoms are H-atom and all with a charge of 0.375.
H2 Molecule
information of H2
| Name | H2 |
| Calculation type | FREQ |
| Calculation title | RB3LYP |
| Basis set | 6-31G(d,p) |
| E9RB3LYP) | -1.1785394 a.u. |
| RMS gradient | 0.0000002 a.u. |
| Point group | D*H |
optimisation of H2
| Bond length | 0.74279 |
| Bond angle | zero(linear shape) |
Item Table
Item Value Threshold Converged?
Maximum Force 0.000000 0.000450 YES
RMS Force 0.000000 0.000300 YES
Maximum Displacement 0.000000 0.001800 YES
RMS Displacement 0.000001 0.001200 YES
Predicted change in Energy=-1.167770D-13
Optimization completed.
-- Stationary point found.
----------------------------
! Optimized Parameters !
! (Angstroms and Degrees) !
-------------------------- --------------------------
! Name Definition Value Derivative Info. !
--------------------------------------------------------------------------------
! R1 R(1,2) 0.7428 -DE/DX = 0.0 !
--------------------------------------------------------------------------------
Jmol dynamic information
test molecule |
You can find the optimised H2 in this link:Media:Yq_H2_OPTIMISATION.LOG

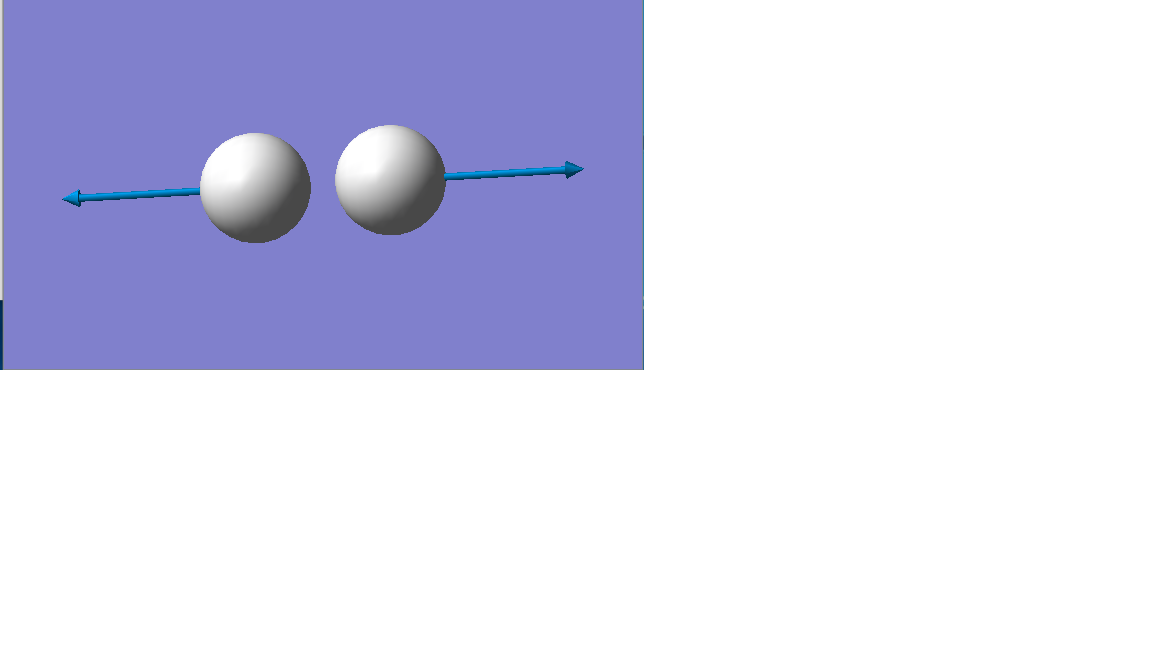

Vibration of H2
basic information about vibration
Vibration mode
| Vibration mode |
|---|
|
| wavenumber/cm-1 |
| 4466 |
| symmetry |
| SGG |
| intensity/arbitrary units |
| 0 |
Charge distribution
Since H2 is a non-polar molecule, so there is no charge on each of the hydrogen atom, so no dipole moment.
N2 Molecule
Information of N2
| Name | N2 |
| Calculation type | FREQ |
| Calculation title | RB3LYP |
| Basis set | 6-31G(d,p) |
| E9RB3LYP) | -109.5241287 a.u. |
| RMS gradient | 0.0000006 a.u. |
| Point group | D*H |
optimisation of N2
| Bond length | 1.1055 |
| Bond angle | zero(linear shape) |
Item table
Item Value Threshold Converged
Maximum Force 0.000001 0.000450 YES
RMS Force 0.000001 0.000300 YES
Maximum Displacement 0.000000 0.001800 YES
RMS Displacement 0.000000 0.001200 YES
Predicted change in Energy=-3.401189D-13
Optimization completed.
-- Stationary point found.
----------------------------
! Optimized Parameters !
! (Angstroms and Degrees) !
-------------------------- --------------------------
! Name Definition Value Derivative Info. !
--------------------------------------------------------------------------------
! R1 R(1,2) 1.1055 -DE/DX = 0.0 !
--------------------------------------------------------------------------------
Jmol dynamic range
test molecule |
This can be found in the link:Media:YQ_N2_OPTIMISATION.LOG
Vibration of N2
Basic information of the vibration of N2
Vibration mode
| Vibration mode |
|---|
|
| wavenumber/cm-1 |
| 2457 |
| symmetry |
| SGG |
| intensity/arbitrary units |
| 0 |
Charge distribution
Since N2 is a non-polar molecule, so there is no charge on each of the hydrogen atom, so no dipole moment.
The mono-metallic TM complex
The research shown that bis(dinitrogen)-(1,1,4,8,11,11-hexaphenyl-1,4,8,11-tetraphosphaundecane)-molybdenum structure AQUVOY and the two N-N distances are 1.1055 and 1.12(1) Å. The difference is caused by the central metal in the picked complex molecule which forms a bond with the N2 legend. Thus one of the nitrogen is attracted by the metal, increasing the N-N length. Moreover, the bond distance given by computer is the distance in the lowest-energy molecule. But experimentally, molecules are not always in the lowest energy state, this should be accounted for the difference in bond lengths. Additionally, the nitrogen is in gaseous state when calculated by computer, but the complex compounds are not always in gaseous state. These all account for the difference in bond lengths.
Reference to the link https://www.ccdc.cam.ac.uk/structures/search?pid=csd:AQUVOY
Haber-Bosch process
equation
N2 + 3H2 -> 2NH3
Energy information about Haber-Bosch process
E(NH3)=-56.5577687 a.u.
2*E(NH3)=-113.1155375 a.u.
E(N2)=-109.5241287 a.u.
E(H2)=-1.1785394 a.u.
3*E(H2)=-3.5356182 a.u.
ΔE=2*E(NH3)-[E(N2)+3*E(H2)]=-0.0557906 a.u.=-146.5 KJ/mol
Since product is in higher energy state than the reactants. so the reactants are more stable than ammonia as it's exothermic reaction and heat(energy)is released.
CO Molecule
Information about CO
| Name | CO |
| Calculation type | FREQ |
| Calculation title | RB3LYP |
| Basis set | 6-31G(d,p) |
| E9RB3LYP) | -113.30945314 |
| RMS gradient | 0.00001828 |
| Point group | C*V |
Optimisation of CO
| C=0 bond distance | 1.2584 |
| bond angle | zero(linear shape) |
Item Table
Item Value Threshold Converged?
Maximum Force 0.000032 0.000450 YES
RMS Force 0.000032 0.000300 YES
Maximum Displacement 0.000012 0.001800 YES
RMS Displacement 0.000018 0.001200 YES
Predicted change in Energy=-3.960922D-10
Optimization completed.
-- Stationary point found.
----------------------------
! Optimized Parameters !
! (Angstroms and Degrees) !
-------------------------- --------------------------
! Name Definition Value Derivative Info. !
--------------------------------------------------------------------------------
! R1 R(1,2) 1.1379 -DE/DX = 0.0 !
--------------------------------------------------------------------------------
Jmol dynamic range
test molecule |
This can be found in the linkMedia:YQ_CO_OPTIMISATIONN.LOG
Vibration of CO
basic information of the vibration of CO
Vibration mode
| Vibration mode |
|---|
|
| wavenumber/cm-1 |
| 2209 |
| symmetry |
| SGG |
| intensity/arbitrary units |
| 0 |
Charge Distribution
Since the oxygen has higher electronegativity than carbon, so the electron pair in the bond is attracted more to the oxygen. This results in the negative charge in O-atom and positive charge in C-atom. So the red atom is O-atom and has a charge of -0.506. The green atoms are C-atom and all with a charge of 0.506.
Molecular orbital diagrams of CO
The electronic configuration of a O-atom is: 1s22s22p4, the electronic configuration of a C is 1s22s2. Different molecular orbitals of CO is formed from the overlap of different atomic orbitals in the C and O orbitals.
MO of 1s bonding orbital
This is the two atomic orbitals of O atom and C atom in the lowest energy state, which has an orbital energy of -19.25805(a.u.). Moreover, the orbitals of atoms do not have overlap, no formation of MO.
Because the outer lower energy electrons will first be used in the reaction. Thus, this orbital is so deep in energy(close to the nucleus) and thus will not be involve in the chemical reaction.
MO of 2s bonding orbital
This is the 2s bonding MO of the CO molecule. It is fromed by the overlap of two 2s orbitals from the O and C atom. It has a higher energy(-1.15791 a.u.) than the upper 1s one, but it is still very low in energy compared with many other orbitals and is thus be occupied. Because CO molecule is SP hybridisation. This orbital is thought to be the s orbital of this hybridisation, as it is in the highest energy level among s orbitals. It will be easier to be involve in the chemical reactions.
MO of 2p bonding orbital
This is the bnding orbital of 2p orbital. And this is formed by the overlap of two atomic p orbitals from the O and C atom. It has a orbital energy of -0.46743 a.u.. It is noticed that there is another MO which has the same energy with this orbital. This is because each O atom has two unhybridised p orbitals, the overlap between the two unhybridised p orbitals results in the two degenerate energy levels. This orbital is in higher energy level and even close to the HOMO-LUMO region. Thus it is very possibly be involved in the chemical reaction.
MO of the HOMO
This is the HOMO(highest occupied molecular orbital) of CO molecule. This is the anti-bonding of the two unhybridised p orbitals in O and C atom, and this has a negative contribution to bonding, thus forming two anti-bonding with the same energy levels. So the two orbitals are both thought to be the HOMO. They both have -0.37145a.u. orbital energy. The difference between the two MOs is direction.
Because they are HOMOs and has high energy, it is usually involved in the chemical reactions. Especially in the reactions having exchanges of electrons.
MO of the LUMO
This is the LUMO(lowest unoccupied molecular orbital). This is also an anti-bonding orbital and with no electron occupied in this orbital. Because it is so high in energy(-0.02177 a.u.), it can be involved most easily in the chemical reactions. This orbital is formed when two hybridised p orbitals overlap. Because of hybridisation, the anti-bonding will be hybridised to have higher energy than other anti-orbitals formed by two unhybridised p orbitals.
O2 molecule
basic information
| Name | BF3 |
| Calculation type | FREQ |
| Calculation title | RB3LYP |
| Basis set | 6-31G(d,p) |
| E9RB3LYP) | -150.25250603 a.u. |
| RMS gradient | 0.05905207 a.u. |
| Point group | D*H |
optimisation of O2
| O=O bond distance | 1.1616 |
| N-H-N bond angle | ZERO(linear shape) |
Item Table
Item Value Threshold Converged?
Maximum Force 0.000130 0.000450 YES
RMS Force 0.000130 0.000300 YES
Maximum Displacement 0.000080 0.001800 YES
RMS Displacement 0.000112 0.001200 YES
Predicted change in Energy=-9.882887D-09
Optimization completed.
-- Stationary point found.
----------------------------
! Optimized Parameters !
! (Angstroms and Degrees) !
-------------------------- --------------------------
! Name Definition Value Derivative Info. !
--------------------------------------------------------------------------------
! R1 R(1,2) 1.216 -DE/DX = -0.0001 !
--------------------------------------------------------------------------------
Jmol dynamic Range
test molecule |
This can be found in this link:Media:YQ_O2_OPTIMISATIONN.LOG
Vibration of O2
basic information of vibration
Vibration mode
| Vibration mode |
|---|
|
| wavenumber/cm-1 |
| 1643 |
| symmetry |
| SGG |
| intensity/arbitrary units |
| 0 |
Charge Distribution
Since O2 is a non-polar molecule, so there is no charge on each of the oxygen atom, so no dipole moment.
