Ammonia (NH3)

Opt N-H bond distance = 1.01798 ± 0.01 Å

Opt H-N-H bond angle = 105.741 ± 1°

For Ammonia
         Item               Value     Threshold  Converged?
 Maximum Force            0.000004     0.000450     YES
 RMS     Force            0.000004     0.000300     YES
 Maximum Displacement     0.000072     0.001800     YES
 RMS     Displacement     0.000035     0.001200     YES

Predicted change in Energy=-5.986281D-10

Molecule: Ammonia (NH3)
Calculation method: RB3LYP
Basis set: 6-31G(d,p)
Final energy E(RB3LYP): -56.55776873 a.u.
RMS gradient: 0.05399560 a.u.
Point group: C3V

File:AMMONIA CN1218.LOG

Ammonia
Vibrations of the optimised ammonia.
Simulated vibrations of ammonia
Wavenumber (cm-1): 1090 1694 1694 3461 3590 3590
Symmetry: A1 E E A1 E E
I.R Intensity: 145 14 14 1 0 0
Image:

We expected 6 modes of vibration following the nonlinear equation of 3N - 6, in which N is the number of atoms in the molecule. Modes with the same wavenumber are degenerate, as wavenumber directly correlates to energy. Both modes with a frequency of 1694 cm-1 are degenerate and 3590 cm-1 are also degenerate. Modes of 1090 cm-1 and both 1694 cm-1 are bending vibrations. All others are bond stretching vibrations. 1090 is the most symmetrical, having a C3 rotational axis and 3 mirror planes along each of the N-H bonds. 1090 is also known as the "umbrella" mode due to it's appearance as all 3 H atoms vibrate downwards relative to the nitrogen. In an experimental spectrum of gaseous ammonia, only 2 bands would be shown as 2 of the modes are degenerate and would only show up as a single peak. The rest have too low intensities to be detected.

Charge on nitrogen atom: -1.125

Charge on hydrogen atom: 0.375

It's expected for nitrogen to be more negative than hydrogen due to the electronegativity of nitrogen pulling the covalent electrons closer to itself.

Hydrogen (H2)

For Hydrogen
        Item               Value     Threshold  Converged?
 Maximum Force            0.000000     0.000450     YES
 RMS     Force            0.000000     0.000300     YES
 Maximum Displacement     0.000000     0.001800     YES
 RMS     Displacement     0.000001     0.001200     YES

Predicted change in Energy=-1.164080D-13

Molecule: Hydrogen (H2)
Calculation method: RB3LYP
Basis set: 6-31G(d,p)
Final energy E(RB3LYP): -1.17853936 a.u.
RMS gradient: 0.00000017 a.u.
Point group: D*H

File:HYDROGEN CN1218.LOG

Hydrogen
Vibration of optimised hydrogen
Simulated vibration of hydrogen
Wavenumber (cm-1) 4466
Symmetry SGG
I.R. Intensity 0

NBO charge on both hydrogen atoms is 0

Nitrogen (N2)

For Nitrogen
        Item               Value     Threshold  Converged?
 Maximum Force            0.000001     0.000450     YES
 RMS     Force            0.000001     0.000300     YES
 Maximum Displacement     0.000000     0.001800     YES
 RMS     Displacement     0.000000     0.001200     YES

Predicted change in Energy=-3.400943D-13

Molecule: Nitrogen (N2)
Calculation method: RB3LYP
Basis set: 6-31G(d,p)
Final energy E(RB3LYP): -109.52412868 a.u.
RMS gradient: 0.00000060 a.u.
Point group: D*H

File:NITROGEN CN1218.LOG

Nitrogen
Vibration of optimised nitrogen
Simulated vibration of nitrogen
Wavenumber (cm-1) 2457
Symmetry SGG
I.R. Intensity 0

NBO charge on both nitrogen atoms is 0

N2 ligand associated complex DEKFUX

A mono-metallic transition metal complex containing a N2 ligand:DEKFUX

[[1]]

Optimised N-N bond length: 1.10550 Å

Bond length in transition metal complex: 1.086 Å

In the computed nitrogen molecule no other external factors were considered, so the bond length is for a molecule isolated from the environment. But the N2 ligand is subjected to the electron density from nearby groups and the transition metal it is bonded to. The packing of the molecules in the crystalline structure could force the bond length to be reduced compared to the isolated N2 molecule.

Haber-Bosch process

N2 + 3H2 -> 2NH3

E(NH3)= -56.55776873

2*E(NH3)= -113.1155375

E(N2)= -109.52412868

E(H2)= -1.17853936

3*E(H2)= -3.53561808

ΔE=2*E(NH3)-[E(N2)+3*E(H2)]= -0.05579074

Energy required for Haber-Bosch process: -146.5 kJmol-1

Ammonia is more stable than the constituent gases alone and is favoured in the reaction.

Silane (SiH4)



For silane
         Item               Value     Threshold  Converged?
 Maximum Force            0.000000     0.000450     YES
 RMS     Force            0.000000     0.000300     YES
 Maximum Displacement     0.000000     0.001800     YES
 RMS     Displacement     0.000000     0.001200     YES
 Predicted change in Energy=-2.451071D-14

Molecule: Silane
Calculation method: RB3LYP
Basis set: 6-31G(d,p)
Final energy E(RB3LYP): -291.88802760 a.u.
RMS gradient: 0.00000002 a.u.
Point group: TD

File:SILANE CN1218.LOG

Silane
Vibrations of simulated silane

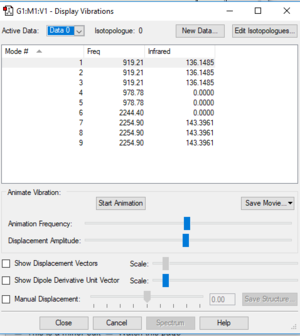

Simulated vibrations of silane
Wavenumber (cm-1): 919 919 919 979 979 2244 2255 2255 2255
Symmetry: T2 T2 T2 E E A1 T2 T2 T2
IR intensity: 136 136 136 0 0 0 143 143 143
Image:

NBO charge on Silicon is 0.336 while the charge is slightly negative on the hydrogens with -0.084

Molecular orbitals of Silane
AO Contribution 4 s-orbitals of hydrogen with 2 pairing up 4 p-orbitals 1s orbital of silicon 4 2s-orbitals 2p-orbital of silicon
MO purpose HOMO of silane LUMO of silane Lowest level MO Sp3 hybridised orbital Low energy p orbital
Relative energy -0.35184 0.05053 -66.12596 -0.54726 -3.63858
Occupation Fully occupied Unoccupied Fully occupied Fully occupied Fully occupied
Effect on bonding Not bonding Anti bonding orbital No effect, electrons are too core to react Highly bonding, single phase, single node that can't be seen externally No effect, a p-orbital too low in energy and that cannot interact with the hydrogens

Marking
