Jenifer Mizen: Transition States and Reactivity
Cope Rearrangement
Firstly, 1,5-hexadiene with an approximately anitiperiplanar relationship between the four middle carbon atoms was optimised using HF/3-21G ( a Hartree-Fock method with the 3-21G basis set). The energy found by the summary was -231.68540au and the molecule was found to have C2h symmetry. The energy gradient and output files were both checked to ensure that convergence had been achieved.
Item Value Threshold Converged? Maximum Force 0.000058 0.000450 YES RMS Force 0.000023 0.000300 YES Maximum Displacement 0.001543 0.001800 YES RMS Displacement 0.000697 0.001200 YES Predicted change in Energy=-2.752863D-07 Optimization completed. -- Stationary point found.
This was repeated for a molecule in which the central carbons were gauche to each other. The energy was expected to be higher, as the a.p.p. conformation is generally the lowest in energy due to favourable interaction between the C-C (or C-H)σ-orbital and the neighbouring C-C (or C-H) σ*-orbital. The orbital overlap is best for the a.p.p. conformation compared to e.g. gauche.[2]The optimised energy was -231.69153 au and the symmetry was C2.
The two conformations are shown below:
A.p.p |
gauche |
The gauche structure corresponds to Gauche4 in Appendix 1. The initial antiperiplanar structure had the same symmetry as Anti3, but a different structure and slightly different energy. It was most similar to Anti1. A slightly different starting geometry was used and optimised to the anti1 conformation:
Antiperiplanar 1 |
This then gave the same point group and energy as anti1.
The Gauche structure was lower in energy than the antiperiplanar. This can be rationalised by considering the pi orbital interacting with the vicinal proton. Newman projections make it easier to visualise this interaction. Here, "D" corresponds to the minimum energy conformation (i.e. gauche 3 in the appendix 1).
.[3]
In the gauche form it was found that the distance between the terminal hydrogen (on the double bond) and a hydrogen on the third carbon atom was 2.44A, which corresponds to a van der Waals attractive interaction, (an A1,3 eclipsed conformation).
Overall, the σ-C-H/π*C=C interaction is responsible for the lower energy of the gauche form.
The lowest energy conformation was then optimised and is shown below:
Gauche 3 |
This has the same energy and point group as gauche 3 in appendix 1.
Next, the Ci anti2 conformation was optimised, and the symmetry checked to ensure it had stayed the same. The energy was found to be -231.69254au. This is the same as that given in the table. The molecule was then re-optimised, this time using the B3LYP/6-31G* level. The energy became more negative at -234.55970au.
| 1234 dihedral angle /o | 2345 dihedral angle /o | 1-2 & 5-6 bond length /A | 2-3 and 4-5 bond length /A | 3-4 bond length/A | |
|---|---|---|---|---|---|
| 1st optimisation | 114.7 | 180.0 | 1.32 | 1.51 | 1.55 |
| 2nd optimisation | 118.7 | 180.0 | 1.34 | 1.51 | 1.56 |
1st optimisation |
2nd optimisation |
For both, the 1234 dihedral angle was the same magnitude, but a different sign to the 3456 dihedral angle. This angle increased somewhat on the second optimisation, but there were no other particularly significant changes to the geometry.
Next, a frequency analysis was done using the same B3LYP/6-31G* level. No negative frequencies were found, with the lowest being at 71.69cm-1.
Sum of electronic and zero-point energies (potential energy at 0K) = -234.416244 au.
Sum of electronic and thermal energies (energy at 298.15K and 1atm, with contributions from translational, vibrational and rotational energy modes) = -234.408953 au.
Sum of electronic and thermal enthalpies (with correction for RT, H=E+RT) = -234.408009au.
Sum of electronic and thermal Free Energies (including entropy G=H-TS) = -234.447852.
PUT IR HERE RECALCULATE AT 0K IF TIME WHY AREN'T MY ANTI2 RESULTS THE SAME AS IN THE TABLE?
Optimising the Chair and Boat Transition Structures
Chair
Firstly, the allyl fragment was optimised (HF/3-21G). Then two of the optimised fragments were put together to give the approximate structure of the transition state. This was then optimised using two different methods:
1. Computing the force constant matrix (or the Hessian). This works well if the guess of the TS is very similar to the true structure.
HF/3-21G was used as before, and an Opt+Freq calculation done , with optimisation set to TS(Berny). To ensure that it did not crash if more than one imaginary frequency were found, "Opt=NoEigen" was added in the additional keywords section. An imaginary frequency was found at 818cm-1. The vibration is shown below:
TSforChairOptforwiki.mol |
On Gaussview, a dotted line is shown between the carbons, instead of one double and one single bond. This has not appeared using the jmol view, however the "single" and "double" bonds shown are actually the same length.
2. Freezing the reaction coordinate (so the rest of the molecule can be optimised), then unfreezing and re-optimising. This time, the distance between the terminal carbons of each fragment was set to 2.2A.
The molecule was then re-optimised to give a result identical to when using the previous method. The distance between the terminal allyl carbons i.e. where the new bond will form, was found to be 2.02A.
Boat
Next, the boat TS was optimised. The QST2 method was used. Two of the Ci anti2 molecules previously optimised were used and the atoms numbered so that the reactant and the product labelling matched. An Opt+Freq calculation was done, and the job failed, giving the following output:
Failed optimisation for boat TS.mol |
QST2 did not take into account the possibility of rotation about the central bonds, so failed to find the TS structure. The input was therefore modified so that the reactant (left hand side) and product (right hand side) had the following configurations:
The QST2 job was re-run. This gave error number 2070, and, when the .chk file was opened, Gaussview stopped responding. When the .out file was opened, it gave a "Gaussian error detected line number 1314" message, and the following structure:
This has evidently not worked either. QST2 is very sensitive to how close the inputted structures are to the TS, so there may have been an error in the input file.
The calculation was redone using QST3, and providing a guess for the TS. This gave the TS structure shown, and C2v symmetry. The C-H interactions shown are unexpected, with lengths of 2.7 and 3.4A.
The Gauche1 conformation in Appendix 1 appears to be the most suitable for the Cope rearrangement, as the two terminal carbons are closest together. The Anti2 also looks suitable, especially for the chair TS, as only a simple rotation around the centre C-C bond is needed to bring it into a suitable geometry for the bond breaking and making of the rearrangement.
IRC
Next, the intrinsic reaction coordinate method (IRC) was used.
Chair TS initial IRC |
The first time this was used, a minimum geometry was not reached and the calculation was redone using three different methods:
1. The final structure given after the initial IRC was run was optimised.
2. The IRC calculation was repeated with 100 points (doubling the number compared to the initial calculation).
3. The calculation was repeated and force constants were calculated at each step.
Method 1. |
Method 2. |
Method 3. |
Method 3. should be the most reliable, however it took the longest amount of time to run.
| C-C forming bond length/A | |
|---|---|
| Initial IRC | 1.57, 2.90 |
| IRC method 1. | 2.17, 4.39 |
| IRC method 2. | 1.56, 3.28 |
| IRC method 3. | 2.02, 2.02 |
The bond forming length found using method 3. is the same as when the TS was optimised previously. This, and the result from the QST3 method both suggest concerted reactions, whereas the other methods do not.
Activation energies for the reaction via both boat and chair TS
The TS structures were reoptimised using the B3LYP/6-31G(d) level, starting from the HF/3-21G Hessian method optimised structures already found. Geometries: Chair: COMP TO NEW TS This compares to the 2.02A, 1.39A and 120.5o found at the lower level of theory. Boat: C-C bond forming distance 2.23A for both pairs of carbons. All other C-C bonds 1.38A. C-C-C bond angle 122.6o. COMP TO PREVIOUS TS
Chair: Initial lower level optimisation:
Zero-point correction= 0.152623 (Hartree/Particle) Thermal correction to Energy= 0.157983 Thermal correction to Enthalpy= 0.158927 Thermal correction to Gibbs Free Energy= 0.124771 Sum of electronic and zero-point Energies= -231.466700 Sum of electronic and thermal Energies= -231.461340 Sum of electronic and thermal Enthalpies= -231.460396 Sum of electronic and thermal Free Energies= -231.494551
Higher level optimisation:
Total energy from summary file -234.55868305au Zero-point correction= 0.143369 (Hartree/Particle) Thermal correction to Energy= 0.150625 Thermal correction to Enthalpy= 0.151569 Thermal correction to Gibbs Free Energy= 0.111606 Sum of electronic and zero-point Energies= -234.415314 Sum of electronic and thermal Energies= -234.408058 Sum of electronic and thermal Enthalpies= -234.407114 Sum of electronic and thermal Free Energies= -234.447077
There were no imaginary vibrations in the IR.
Boat: Lower level optimisation:
Zero-point correction= 0.151870 (Hartree/Particle) Thermal correction to Energy= 0.157500 Thermal correction to Enthalpy= 0.158444 Thermal correction to Gibbs Free Energy= 0.123025 Sum of electronic and zero-point Energies= -231.450932 Sum of electronic and thermal Energies= -231.445303 Sum of electronic and thermal Enthalpies= -231.444359 Sum of electronic and thermal Free Energies= -231.479777
Higher level optimisation:
Total energy from summary file -232.79730444au Zero-point correction= 0.141550 (Hartree/Particle) Thermal correction to Energy= 0.147856 Thermal correction to Enthalpy= 0.148800 Thermal correction to Gibbs Free Energy= 0.112783 Sum of electronic and zero-point Energies= -234.351364 Sum of electronic and thermal Energies= -234.345059 Sum of electronic and thermal Enthalpies= -234.344114 Sum of electronic and thermal Free Energies= -234.380132
There was one imaginary vibration in the IR at -504.28cm-1.
These energies are significantly different to each other at the two different levels (1 Hartree = 627.509 kcal/mol). COMP TO APPENDIX 2
ACTIVATION ENERGIES ... AND AT HIGHER TEMPERATURES
ATTACH APPENDICES.
The Diels Alder Cycloaddtion
Firstly, cis butadiene was built in Gaussview and C-C bond lengths and angles were set using data from a previous molecular mechanics study.[5] This was "cleaned" then optimised to a minimum using HF/3-21G. The energy gradient and summary suggested that this had been successful. A frequency analysis was done using the same methods and no negative frequencies were found.
The thermochemistry data is shown below:
Zero-point correction= 0.118498 (Hartree/Particle) Thermal correction to Energy= 0.122530 Thermal correction to Enthalpy= 0.123474 Thermal correction to Gibbs Free Energy= 0.092955 Sum of electronic and zero-point Energies= -155.112862 Sum of electronic and thermal Energies= -155.108830 Sum of electronic and thermal Enthalpies= -155.107886 Sum of electronic and thermal Free Energies= -155.138405
Next, the Mos were visualised. The HOMO was asymmetrical with respect to the reflection plane of the reaction the mole, and the LUMO was symmetric.
Next, the optimised structure and ethene were drawn, and a TS guessed. The TS was guessed by modifying bicyclo[2,2,2]octane, deleting 2 carbons and changing or deleting other bonds, then TS(Berny)calculation was used.
TS(Berny) Optimisation: Item Value Threshold Converged? Maximum Force 0.000022 0.000450 YES RMS Force 0.000003 0.000300 YES Maximum Displacement 0.000421 0.001800 YES RMS Displacement 0.000073 0.001200 YES Predicted change in Energy=-5.010461D-09 Optimization completed. -- Stationary point found.

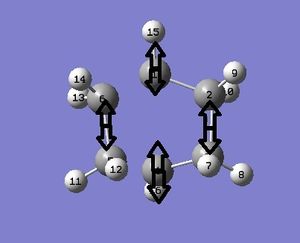

The output gave 1 imaginary frequency at -554cm-1. Visualising this frequency suggested that both bonds formed at the same time. The lowest positive frequency was 165cm-1. This would have suggested asynchronous bond formation.
.gif)
The thermochemistry data is also shown below:
Zero-point correction= 0.152697 (Hartree/Particle) Thermal correction to Energy= 0.157712 Thermal correction to Enthalpy= 0.158656 Thermal correction to Gibbs Free Energy= 0.124359 Sum of electronic and zero-point Energies= -231.388077 Sum of electronic and thermal Energies= -231.383062 Sum of electronic and thermal Enthalpies= -231.382118 Sum of electronic and thermal Free Energies= -231.416414

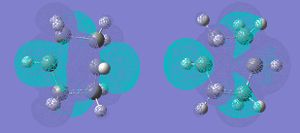

The Mos were then visualised. Both were found to have a sigma v plane of symmetry relative to the plane of the forming ring, and a C2 axis lying along this plane.
HOMO.jpg)
LUMO.jpg)
The above calculations were re-done using a higher level (B3LYP/6-31G(d) - outputs were checked as before)to give the following results:
| C-C bond forming length/A | C-C (from ethene) bond length/A | C=C bond forming length/A | C-C (from butadiene) lengths/A | Butadiene dihedral angle/o | |
|---|---|---|---|---|---|
| 1st optimisation | 1.5 | 1.5 | 1.5 | 1.5 | 29.3 |
| 2nd optimisation | 1.5 | 1.6 | 1.6 | 1.5 | 22.2 |
The dihedral angle was the main difference in geometry. The Mos were also visualised using the more accurate basis set, however there were no significant changes. The imaginary frequency did however change to 311cm-1, and the lowest positive frequency to 116cm-1. The imaginary frequency appear the same, but the positive one was less conclusively asynchronous at the higher level.
A normal C-C bond has length 1.54A, and C=C 1.36A. The van der Waals radius of carbon is 1.70A (Webelements). This means that the distance between the carbons about to form a new bond in the TS is less than that of the sum of the van der Waals radii.
The thermochemistry data did change considerably:
Zero-point correction= 0.141771 (Hartree/Particle) Thermal correction to Energy= 0.147361 Thermal correction to Enthalpy= 0.148305 Thermal correction to Gibbs Free Energy= 0.112772 Sum of electronic and zero-point Energies= -234.369822 Sum of electronic and thermal Energies= -234.364233 Sum of electronic and thermal Enthalpies= -234.363289 Sum of electronic and thermal Free Energies= -234.398822
The HOMO of ethene is symmetric with respect to the reflection plane, whereas its LUMO is antisymmetric. A reaction is allowed if a HOMO-LUMO interaction between the reactants is possible. Since a + a --> a, s + s --> and s + a --> a, the product must be antisymmetric with respect to the reflection plane. This can be seen in the TS:
This is confirmed by looking at the MOs of the butadiene. The HOMO reacts with the pi antibonding orbital of the ethene to give the TS. The HOMO/LUMO interaction and the fact that there is good orbital overlap means that the reaction is allowed.
Cyclohexa-1,3-diene and maleic anhydride
Next, the reaction of cyclohex-1,3-diene with maleic anhydride was investigated. The endo and exo TS structures were optimised and geometries and energies compared.
Firstly, the cyclohexadiene was optimised at HF/3-21g level and was seen to converge.
. Next, this was reoptimised at B3LYP?6-31G(d) and convergence checked as before. The same was done for maleic anhydride.
Once the two reactants were optimised satisfactorily, the endo and exo products were optimised. A QST3 calculation could then be set up, with the optimised reactants in one pane, the product in the next, and a guessed structure for the TS in the last pane. Data from a previous computational experiment REFERENCE HERE was used to guess suitable bond forming lengths for the TS, and the atoms were re-numbered appropriately.
J.I. Garcia, J.A. Mayoral, and Luis Salvatella, "An Ab Initio Study on the Conformational and Endo/Exo Preference of Acrylate in Diels-Alder Reactions", Tetrahedron, 53, 6057 (1997).
Exo TS
The exo TS was optimised and thermochemistry data found:
Zero-point correction= 0.195859 (Hartree/Particle) Thermal correction to Energy= 0.204620 Thermal correction to Enthalpy= 0.205564 Thermal correction to Gibbs Free Energy= 0.161353 Sum of electronic and zero-point Energies= -605.383190 Sum of electronic and thermal Energies= -605.374429 Sum of electronic and thermal Enthalpies= -605.373485 Sum of electronic and thermal Free Energies= -605.417696
Bond lengths were investigated, and will be compared with the endo TS (see later).

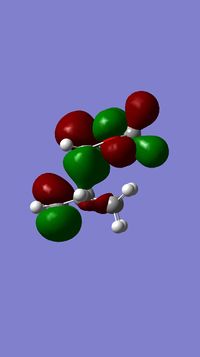

The TS HOMO was found:
....................Bond forming lengths 1.69A, 1.54A. The HOMO is therefore not totally symmetrical and doesn’t have a perfect C2 axis or sigma v plane. C-C distances in maleic anhydride part: (C1-2 and C3-4)1.51 and 1.52 C13-14: 1.49 C14-15: 1.32 C15-10: 1.53 C10-11: 1.69 C11-12: 1.55 C12-13: 1.54
(CO)-O-(CO): 112.7o.........................
Endo TS
- ↑ Chemistry wiki Template:Www.ch.ic.ac.uk/wiki
- ↑ R. Pitzer, W. Lipscomb, J. Chem. Phys., 1963, 39, 1995. DOI:10.1063/1.1734572
- ↑ B. Gung, Z. Zhu, R. Fouch, J. am. Chem. Soc., 1995, 117, 1783-1788. DOI:10.1021/ja00111a016
- ↑ H. Rzepa,{{|http://vle.imperial.ac.uk/webct/cobaltMainFrame.dowebct}}
- ↑ D. Guay,Dept of Chemistry, University of Maine, Orono, ME 04469{{|http://chemistry.umeche.maine.edu/Modeling/donmolmech.html }}
