NH3 molecule

general imformation

N-H bond distance	1.02 ± 0.01Å
H-N-H bond angle	106± 1°
Calculation Method	RB3LYP
Basis Set	6-31G(d,p)
E(RB3LYP)	(-56.55776873 a.u.)
RMS Gradient Norm	0.00000485 a.u.
Point Group	C3V

This is my logfile

item table


         Item               Value     Threshold  Converged?
 Maximum Force            0.000004     0.000450     YES
 RMS     Force            0.000004     0.000300     YES
 Maximum Displacement     0.000072     0.001800     YES
 RMS     Displacement     0.000035     0.001200     YES

projected molecule

NH3

vibration and charge

vibration

wavenumber cm-1	symmetry	intensity
1090	A1	145.3814
1694	E	13.5533
1694	E	13.5533
3461	A1	1.0608
3590	E	0.2711
3590	E	0.2711

how many modes do you expect from the 3N-6 rule? 6 modes

which modes are degenerate (ie have the same energy)? 1693.95cm -1 and 3589.82 cm-1

which modes are "bending" vibrations and which are "bond stretch" vibrations?

"bending" vibrations : 1089.54 cm-1 1693.95 cm-1

"bond stretch" vibrations : 3461.29 cm-1 and 3589.82 cm-1

which mode is highly symmetric? 3461.29 cm-1

one mode is known as the "umbrella" mode, which one is this? 1090 cm-1

how many bands would you expect to see in an experimental spectrum of gaseous ammonia? 2, because intensity of others are low

charge distribution

atom	charge
N	(-1.125)
H	0.375

note: the N is more electronegative across period table( group 15), it has high negative charge

N2

general imformation

N≡N bond distance	1.10± 0.01Å
N≡N bond angle	180°
Calculation Method	RB3LYP
Basis Set	6-31G(d,p)
E(RB3LYP)	(-109.52412868 a.u.)
RMS Gradient Norm	0.00000060 a.u.
Point Group	D∞h

this is my log file

item table

         Item               Value     Threshold  Converged?
 Maximum Force            0.000001     0.000450     YES
 RMS     Force            0.000001     0.000300     YES
 Maximum Displacement     0.000000     0.001800     YES
 RMS     Displacement     0.000000     0.001200     YES

projected molecule

N2

vibration and charge

vibration

wavenumber cm-1	2457
symmetry	SGG
intensity (arbitrary units)	0

charge distribution

atom	charge
N	(0.000)
N	(0.000)

H2

general imformation

H-H bond distance	0.74 ± 0.01Å
H-H bond angle	180°
Calculation Method	RB3LYP
Basis Set	6-31G(d,p)
E(RB3LYP)	(-1.17853936 a.u.)
RMS Gradient Norm	0.00000017a.u.
Point Group	D∞h

this is my log file

item table

        Item               Value     Threshold  Converged?
Maximum Force            0.000000     0.000450     YES
RMS     Force            0.000000     0.000300     YES
Maximum Displacement     0.000000     0.001800     YES
RMS     Displacement     0.000001     0.001200     YES

projected molecule

H2

vibration and charge

vibration

wavenumber cm-1	4466
symmetry	SGG
intensity (arbitrary units)	0

charge distribution

atom	charge
H	(0.000)
H	(0.000)

nano matel complex

there are two N-N bond within this structure. bond distances are both 0.9843 Å

optimised bond distance'(1.10Å) is longer than the crystal structure bond distance, because for the optimised bond distance is only the measure of distance of a single N2 molecule, there is no other surrounding effect to the bond distance. But in actual crystal structure, the triple bond could more stabilized by overlapping the orbital in the centre metal. [paper reference]

Energy of Haber-Bosch process

N2 + 3H2 -> 2NH3

E(NH3)= -56.5577687 a.u.

2*E(NH3)= -113.1155375 a.u.

E(N2)= -109.5241287 a.u.

E(H2)= -1.17853936 a.u.

3*E(H2)= -3.5356181 a.u.

ΔE=2*E(NH3)-[E(N2)+3*E(H2)]= -113.1155375 + 109.5241287 +3.5356181 = - 0.0557907 a.u. = - 146.82 ± 0.1 kJ/mol

the total energy of the reaction is negative, so ammonia product is more stable

SiH4 molecule

general imformation

Si-H bond distance	1.48 ± 0.01Å
H-Si-H bond angle	109 ± 1°
Calculation Method	RB3LYP
Basis Set	6-31G(d,p)
E(RB3LYP)	(-291.88802760 a.u.)
RMS Gradient Norm	0.00000002 a.u.
Point Group	TD

This is my logfile

item table


               Item               Value     Threshold  Converged?
 Maximum Force            0.000000     0.000450     YES
 RMS     Force            0.000000     0.000300     YES
 Maximum Displacement     0.000000     0.001800     YES
 RMS     Displacement     0.000000     0.001200     YES

projected molecule

SiH4

vibration and charge

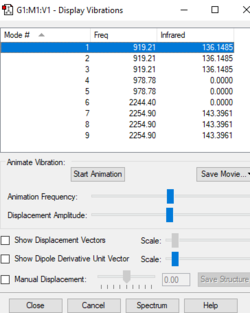

vibration

wavenumber cm-1	symmetry	intensity
919	T2	136.1485
919	T2	136.1485
919	T2	136.1485
979	E	0.0000
979	E	0.0000
2244	A1	0.0000
2254	T2	143.3961
2254	T2	143.3961
2254	T2	143.3961

charge distribution

atom	charge
Si	(0.629)
H	(-0.157)

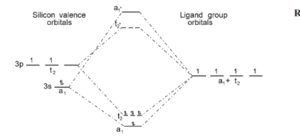

molecular orbital

discription	image
1. unhybidised orbital from AO-2p (Si),fully occupied,3 degenerate state
2. hybidised σ orbital, form by 3s(Si) and 1s(H), in-phase overlap, fully occupied,
3. hybidised π orbital, form by 3p(Si) and 1s(H),in-phase overlap,fully occuped,LOMO, three degenerate state
4. hybidised π* antiorbital, form by 3p(Si) and 1s(H),out-of-phase overlap,unoccuped,HOMO, three degenerate state
5. hybidised σ* antiorbital, form by 3s(Si) and 1s(H),out-of-phase overlap, unoccupied

sturcture is stabilised as bonding orbitals are fully filled, antibonding is not filled.

reference[1]

Ione M. Baibich,Ian S. Butler, BRIEF INTRODUCTION TO MOLECULAR ORBITAL THEORY OF SIMPLE POLYATOMIC MOLECULES FOR UNDERGRADUATE CHEMISTRY STUDENTS 15/6/12
