Molecular Modelling

NH₃

File:01500903ANNAGUO NH3OPT.LOG

OPT information

calculation method	basis set	final energy	RMS gradient	point group
RB3LYP	6-31G(d.p.)	-56.55776873a.u.	0.00000485a.u.	C3V

real output--item table

         Item               Value     Threshold  Converged?
 Maximum Force            0.000004     0.000450     YES
 RMS     Force            0.000004     0.000300     YES
 Maximum Displacement     0.000072     0.001800     YES
 RMS     Displacement     0.000035     0.001200     YES

vibration

wavenumber cm-1	1090	1694	1694	3461	3590	3590
symmetry	A1	E	E	A1	E	E
intensity arbitrary units	145	14	14	1	0	0

6 modes are expected from the 3N-6 rule.

The second and third modes are degenerated which have wavenumber of 1694cm^-1.

Also, the fifth and sixth modes are degenerated which have wavenumber of 3590cm^-1.

bending: 1090cm^-1, 1694cm^-1, 1694cm^-1

stretching: 3461cm^-1, 3590cm^-1, 3590cm^-1

3461cm^-1 one is highly symmetric.

1090cm^-1 one is umbrella mode.

2 bands are expected in experimental spectrum.

charge distribution

charge on N = -1.125

charge on H = +0.375

N is expected to be negatively charged and H is expected to be positively charged because N is more electronegative.

N₂

File:ANNAGUON2OPT.LOG

OPT information

calculation method	basis set	final energy	RMS gradient	point group
RB3LYP	6-31G(d.p.)	-109.52412868a.u.	0.00000134a.u.	D∞h

real output--item table

         Item               Value     Threshold  Converged?
 Maximum Force            0.000002     0.000450     YES
 RMS     Force            0.000002     0.000300     YES
 Maximum Displacement     0.000001     0.001800     YES
 RMS     Displacement     0.000001     0.001200     YES

vibration

wavenumber cm-1	2457
symmetry	SGG
intensity arbitrary units	0

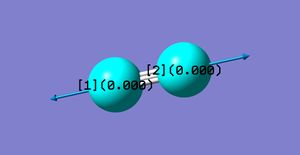

charge distribution

H₂

File:01500903H2OPT.LOG

OPT information

calculation method	basis set	final energy	RMS gradient	point group
RB3LYP	6-31G(d.p.)	-1.17853936a.u.	0.00000023a.u.	D∞h

real output--item table

         Item               Value     Threshold  Converged?
 Maximum Force            0.000000     0.000450     YES
 RMS     Force            0.000000     0.000300     YES
 Maximum Displacement     0.000001     0.001800     YES
 RMS     Displacement     0.000001     0.001200     YES

vibration

wavenumber cm-1	4466
symmetry	SGG
intensity arbitrary units	0

charge distribution

Cl₂

File:ANNAGUOCL2OPT3.LOG

OPT information

calculation method	basis set	final energy	RMS gradient	point group
RB3LYP	6-31G(d.p.)	-920.3498788a.u.	0.00008611a.u.	D∞h

real output--item table

         Item               Value     Threshold  Converged?
 Maximum Force            0.000149     0.000450     YES
 RMS     Force            0.000149     0.000300     YES
 Maximum Displacement     0.000415     0.001800     YES
 RMS     Displacement     0.000587     0.001200     YES

vibration

wavenumber cm-1	521
symmetry	SGG
intensity arbitrary units	0

charge distribution

complex containing N₂

name:tris(m-N-(3,5-dimethylphenyl)di(propan-2-yl)phosphanaminido)-(bis(4-methoxyphenyl)methanone)-dinitrogen-titanium-cobalt diethyl ether solvate

N-N triple bond distance= 1.0773Å

The bond length between N-N triple bond in complex is smaller than that in nitrogen gas. This may because Co next to N donate electron to N, which results in the increase in electronegativity of that N atom, therefore the distance between two nitrogen atoms decreases.

energy for forming NH₃

E(NH3)=-56.55776873 a.u.

2*E(NH3)=-113.11553746 a.u.

E(N2)=-109.52412868 a.u.

E(H2)=-1.17853936 a.u.

3*E(H2)=-3.53561808 a.u.

ΔE=2*E(NH3)-[E(N2)+3*E(H2)]=-0.0557907 a.u. = -146.5 kjmol^-1

MO for Cl₂

This molecular orbital is the sigma bonding between two 1s orbitals of two chlorine atoms, which is deep in energy (-101.60295 a.u.) and occupied by two electrons.

This molecular orbital is the sigma antibonding between two 1s orbitals of two chlorine atoms, which is occupied by two electrons. This orbital is not deep in energy(-9.51828 a.u.).

This molecular orbital is the sigma bonding between two 2p orbitals of two chlorine atoms, which is occupied by two electrons. This orbital is not deep in energy(-7.2859 a.u.).

This molecular orbital is the pi antibonding between two 4p orbitals of two chlorine atoms, which is HOMO of Cl₂ and occupied by two electrons. This orbital is not deep in energy(-0.31356 a.u.).

This molecular orbital is the sigma antibonding between two 4p orbitals of two chlorine atoms, which is LUMO of Cl₂ and not occupied by electrons. This orbital is not deep in energy(-0.14189 a.u.).
