NH₃ Molecule

	Calculation method	Basis set	RMS gradient (au)	Final Energy E (au)	Point Group
Ammonia	B3LYP	6-31G(d,p)	0.00000485	-56.55776873	Cv3

NH₃ molecule

NH bond distance = 1.02 Å

H-N-H Bond angle = 106 °

distances and angles should be considered accurate to ≈ 0.01Å and bond angles are accurate to ≈ 1°

Item table

         Item               Value     Threshold  Converged?
 Maximum Force            0.000004     0.000450     YES
 RMS     Force            0.000004     0.000300     YES
 Maximum Displacement     0.000070     0.001800     YES
 RMS     Displacement     0.000033     0.001200     YES

The optimisation file is liked to here

Mode	1	2	3	4	5	6
Wavelength (cm^-1)	1089	1694	1694	3461	3590	3590
Symmetry	A1	E	E	A1	E	E
Intensity (Arbitrary Units)	145	14	14	1	0.27	0.27

We expect to see 6 modes with 2 and 3 being degenerate as well as 5 and 6. 1,2 and 3 are bending vibrations and 4,5 and 6 are bond stretch vibrations. Mode 4 is highly symmetrical. Mode 1 is known as the umbrella mode. There is no dipole change in modes 5 and 6. Mode 2 and 3 will produce the same band and mode 1 will also produce a band. Therefore we should expect to see 2 bands in an experimental spectrum of gaseous ammonia.

In ammonia, nitrogen has a charge of -1.125 and hydrogen has a charge of 0.375. Nitrogen is more electronegative than hydrogen due to its higher nuclear charge. This causes nitrogen to attract the electron density from the hydrogen atoms resulting in the hydrogen becoming positively charged and itself negatively charged.

N₂ Molecule

	Calculation method	Basis set	RMS gradient (au)	Final Energy E (au)	Point Group
Nitrogen	B3LYP	6-31G(d,p)	0.00247261	-109.52412298	D∞H

N₂ molecule

N≡N bond distance = 1.10 Å

Item table

         Item               Value     Threshold  Converged?
 Maximum Force            0.000006     0.000450     YES
 RMS     Force            0.000006     0.000300     YES
 Maximum Displacement     0.000002     0.001800     YES
 RMS     Displacement     0.000003     0.001200     YES

The optimisation file is liked to here

Mode	1
Wavelength (cm^-1)	2457
Symmetry	SGG
Intensity (Arbitrary Units)	0

Both nitrogen have a charge of 0 as the molecule is non-polar. Both atoms are the same so have the same electronegativity resulting in a net charge of 0.

H₂ Molecule

	Calculation method	Basis set	RMS gradient (au)	Final Energy E (au)	Point Group
Hydrogen	B3LYP	6-31G(d,p)	0.09719500	-1.15928020	D∞H

H₂ molecule

H-H bond distance = 0.60 Å

Item table

         Item               Value     Threshold  Converged?
 Maximum Force            0.000000     0.000450     YES
 RMS     Force            0.000000     0.000300     YES
 Maximum Displacement     0.000000     0.001800     YES
 RMS     Displacement     0.000001     0.001200     YES

The optimisation file is liked to here

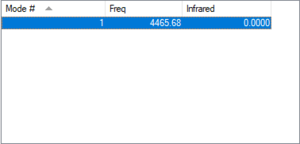

Mode	1
Wavelength (cm^-1)	4457
Symmetry	SGG
Intensity (Arbitrary Units)	0

The molecule is non-polar. As both atoms are the same they have a charge of 0.

Structure and reactivity

Comparing H-H bond in mono-metallic TM complex, ZUXSUG to H-H in hydrogen:

	H-H bond distance (Å)
H₂	0.6
ZUXSUG	1.3

The H-H bond distance of the complex is over double that of my optimised H₂ molecule. This is due to the fact when hydrogen is attached to the more negative ruthenium ion the charge on the hydrogen also increases. This increase H-H repulsion increasing the bond angle and therefore the bond distance. There are no external factors such as transition metals affect the optimised H₂. The crystal structure and computational distance differ due to errors associated with calculating the values for each method.

Haber-Bosch Process Calculation

E(NH₃)= -56.5577687 au
2*E(NH₃)= -113.1155370 au
E(N₂)= -109.52412868 au
E(H₂)= -1.1785394 au
3*E(H₂)= -3.5356182 au
ΔE=2*E(NH₃)-[E(N₂)+3*E(H₂)]= -0.055791 au

Energy for reaction of N₂ + 3H₂ -> 2NH_{3 = -0.05580 au (-146.5 kJ/mol)}

Therefore, as energy is released the forward process is favoured thermodynamically so ammonia is more stable than its substituents.

Small molecule: SiH₄

	Calculation method	Basis set	RMS gradient (au)	Final Energy E (au)	Point Group
Silane	B3LYP	6-31G(d,p)	0.00005848	-291.88802747	TD

SiH4 molecule

Si-H bond distance = 1.48 Å

H-Si-H bond angle = 109 °

The literature value for the Si-H bond distance is 1.48 Å and 109.5° for the H-Si-H bond angle. These values are very similar or correct to 2 and 1 decimal places respectively.^[1]

Item table

         Item               Value     Threshold  Converged?
 Maximum Force            0.000113     0.000450     YES
 RMS     Force            0.000061     0.000300     YES
 Maximum Displacement     0.000589     0.001800     YES
 RMS     Displacement     0.000315     0.001200     YES

The optimisation file is liked to here

Using the 3N-6 rule we should expect to see 9 modes.

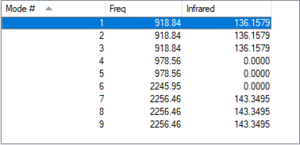

Mode	1	2	3	4	5	6	7	8	9
Wavelength (cm^-1)	919	919	919	979	979	2246	2256	2256	2256
Symmetry	TS2	TS2	TS2	E	E	A1	TS2	TS2	TS2
Intensity (Arbitrary Units)	136	136	136	0	0	0	143	143	143

Modes 1-5 are bending vibrations and 6-9 are stretching vibrations. Mode 6 is highly symmetrical. Modes 1,2 and 3 are degenerate as well as 4 and 5, and 7,8 and 9. therefore we should expect to see 3 bands in an experimental spectrum of silane.

The charge of the silicon atom is 0.630 and the charge of the hydrogen atoms are -0.157. Silicon is less electronegative than hydrogen as it is further down the periodic table so there is a larger distance between the nucleus and electron pairs, weakening the electrostatic attraction so electron density transfers to the hydrogen. Thereby leaving silicon with a positive charge and hydrogen with negative charge.

Energy calculations:

Si + 2H₂ → SiH₄

E(SiH₄)= -291.8880275 au
E(Si)= -289.3289016 au
E(H₂)= -1.1592802 au
2*E(H₂)= -2.3185604 au
ΔE=E(SiH₄)-[E(Si)+2*E(H₂)]= -0.2405656 au

Energy of reaction = -0.24057 au = -631.6 kJ/mol therefore reaction is spontaneous.

Molecular orbitals

The symmetry of the 3s orbital is A₁ and the symmetry of the 3p orbitals are T₂.

This gives a bond order of 4.

The 1s orbital is not involved in chemical bonding as shown by the lack of overlap with the atomic orbitals of the hydrogen atoms and the low energy.

The 2s orbital is much higher in energy compared to the 1s orbital with an energy of -5.28 au, compared to the -66.13 au of the 1s orbital.

The 3s orbital is hybridised with three 3p orbitals to give an sp3 hybridised molecule, hence the tetrahedral symmetry. .A1 is formed combining 3s orbital with one of the 1s orbitals of the hydrogen atom. The overlap is more apparent here compared to the two previous MOs.

The MO with the T₂ symmetry is formed combining the three 3p orbitals with 3 of the hydrogen 1s orbitals, creating 3 degenerate levels, hence is higher up in energy(-0.3185 au) than MO 6 (-0.547 au). All pAO based MOs are occupied resulting in the high stability of Silane.

The 4s orbital is unoccupied and has a positive energy. The LUMO is closer to the 3p orbitals of the silicon and therefore SiH4 will act as an electron donor through the H atoms and electron acceptor through the silicon.

H₂O molecule

Decomposition of water 2H₂O → 2H₂ + O₂

E(H₂O) = -76.4197374 au

E(H₂) = -1.1785394 au

E(O₂) = -150.2574243 au

2*E(H₂O) = -152.8394750 au

2*E(H₂) = -2.3570788 au

ΔE=[E(O₂)+2*E(H2)]-2*E(H₂O) = 0.22497 au =+590.7 kJ/mol Reaction is endothermic therefore is unlikely to occur at room temperature.

References

↑ http://www.chem.tamu.edu/rgroup/connell/linkfiles/bonds.pdf
↑ http://www.scielo.br/scielo.php?script=sci_arttext&pid=S0100-40422012000700032
