BH₃

A BH₃ molecule

Note that all BH₃ molecules had bond angles of exactly 120.000^o regardless of the level of optimisation and frequency.

BH₃ energy and key information (3-21G)

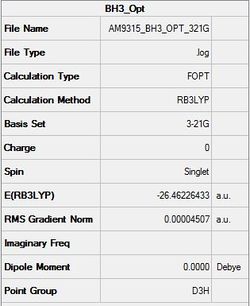

Key information for BH₃ molecule after 3-21G optimisation

Bond length for optimised 3-21G BH₃ = 1.19453 A

Bond angle = 120.000^o

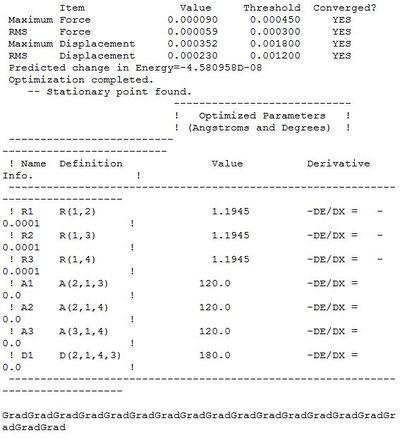

Log of information for BH₃ optimised using the method 3-21G

Above, the log of information contains information such as the gradient of the slope for the energy vs distance graphs through the force items.

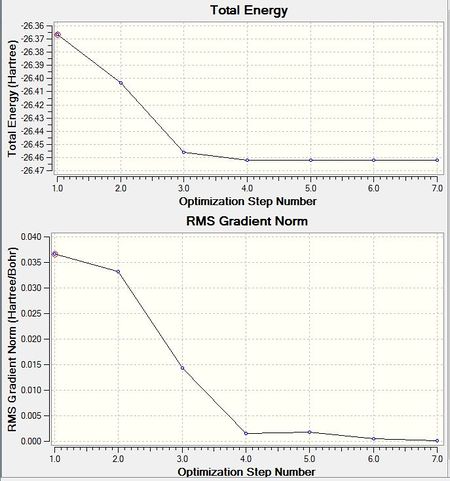

The first graph gives the energy of BH₃ at each step of the optimisation. The second graph gives the gradient of the energy of the optimisation at each step of the optimisation

As is shown in the graph above, the optimisation allows the BH₃ molecule to reach its equilibrium state, thus being able to stabilise the molecule. When nuclei and and electrons are not in equilibrium their mutual interactions, i.e. nuclear-nuclear repulsion, nuclear-electron attraction, electron-electron interactions are not stable, these interactions cause forces to be exerted on the nuclei and electrons making them shift into better positions. That is, the molecule will experience forces F(R) as long as a change in position (delta R) causes a change in energy, delta E(R).

BH₃ energy and key information (6-31G)

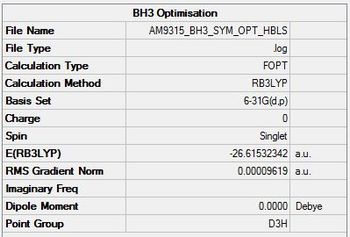

Key information for BH₃ molecule after 6-31G optimisation

Bond length = 1.19273 A

Note how the bond length changes simply by using a higher level basis set.

Bond angle = 120.000^o

Also, note how the energy differs by using the a different basis method.

E(3-21G) = -26.61532342 a.u.

E(6-31G) = -26.61532342 a.u.

ΔE = 0.1530593 a.u. = 402 kJ/mol

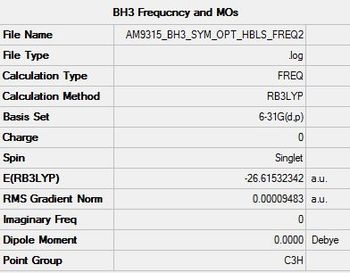

Key information for BH₃ molecule after frequency analysis

Note that the symmetry label after frequency analysis is C3H which cannot be explained as the bond angles are still exactly 120.000^o.

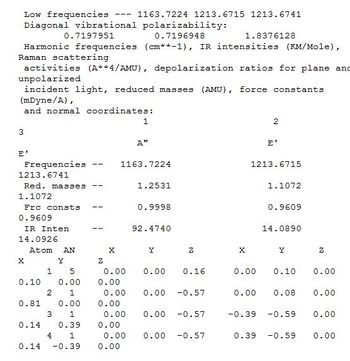

Log of information for BH3 optimised using the method 3-21G and then frequency analysed

Association energies: Ammonia and Borane

NH₃

A NH₃ molecule

Key info for NH₃ molecule

NH₃BH₃

A NH₃BH₃ molecule

Key info for NH₃BH₃ molecule

E(NH₃) = -56.55664134 a.u.

E(BH₃) = -26.61532342 a.u.

E(NH₃BH₃) = -83.22469026 a.u.

ΔE = E(NH₃BH₃) - [E(NH₃)+E(BH₃)] = -0.0527255 a.u. = -138.4 kJ/mol.

Ng611 (talk) 21:40, 20 May 2018 (BST) Close, but off by a few Kj/mol. Remember also to report your units only to the nearest Kj/mol.

The dative BN bond is weaker than other Boron based bonds such as BCl which has a bond formation of -456 kJ/mol or a nitrogen based bond such as NCl which has a bond formation of -313kJ/mol.

Ng611 (talk) 21:40, 20 May 2018 (BST) Remember to cite your bond values (ideally from a textbook, databook, or paper).

MO and LCAO diagram for BH₃

An MO diagram for BH₃

As is seen in the Figure above, there are no significant differences between the LCAO MOs (i.e. black and white images) and the and the real MOs. This demonstrates that qualitative MO theory is very accurate and useful in regards to building and describing Molecular Orbitals in a Chemistry sense.

BBr₃

A BBr₃ molecule

Key info for BBr₃ molecule

DOI:10042/202399

Ionic Liquids: Designer Solvents

[N(CH₃)₄]⁺

An [N(CH₃)₄]⁺ molecule

Dative N-C Bond length = 1.50936 A

Standard N-C Bond length = 1.50934(2-5) A

Tetrahedral Bond Angle = 109.47^o

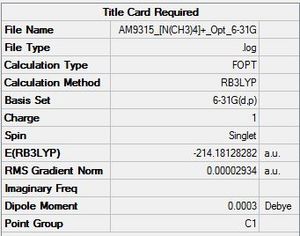

Key info for [N(CH₃)₄]⁺ after optimisation

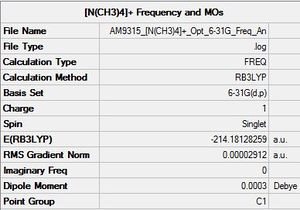

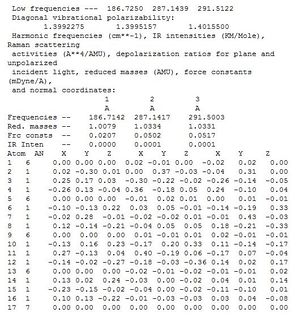

Key info for [N(CH₃)₄]⁺ after optimisation and frequency analysis

Log of information for [N(CH₃)₄]⁺ optimised using the method 6-31G and then frequency analysed

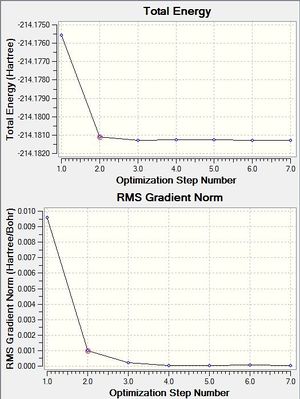

The first graph gives the energy of [N(CH₃)₄]⁺ at each step of the optimisation. The second graph gives the gradient of the energy of the optimisation at each step of the optimisation

The first graph which shows the effects of optimisation against energy shows how the optimisation of the cation succeeds in achieving an energy minima where the cation is its most stable configuration. The frequency analysis further stabilizes the cation as can be shown when comparing the energy before and after frequency analysis.

Energy after optimisation = -214.18110186

Energy after optimisation and frequency analysis = -214.18128359

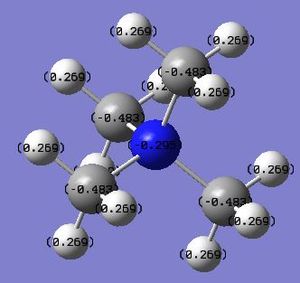

Charge distribution for [N(CH₃)₄]⁺ molecule

Charge of nitrogen = -0.295.

Charge of carbon atoms of methane = -0.483

Charge of hydrogen atoms of methane = 0.259

Ng611 (talk) 21:53, 20 May 2018 (BST) You needed to include a colour scale here. Your charge analysis was performed correctly though -- well done.

It is interesting to observe that the nitrogen (central species) has a higher charge, thus lower electron density surrounding it compared to the carbon (ligand). One would not expect that as nitrogen has an electronegativity of 3.04 and carbon has an electronegativity of 2.55, that the charge centered around the nitrogen. An explanation as to why this is not the case is that the fact that the molecule is [N(CH₃)₄]⁺, thus the one of the nitrogen bonds is dative meaning that a lone electron pair is being donated into the methyl group. This is shown by one bond being significantly shorter than the others. However, the Charge distribution shows that all carbon atoms have the same charge which would not be the case if one was receiving electron density. It could be that due to the effectiveness of nitrogen as a Lewis base i.e. a strong donor and the electronegativity difference in favour of nitrogen result in the electron density of the NC bond would be concentrated at the center of the bond. The carbon atoms would then also receive additional electron density from the methane groups thus making it the group with the highest charge density in this cation.

This theory slightly support the theory that in an ionic structure, the ligand would have the charge concentrated on the central atom (as shown below). The charge seems to represent the relative charge of the central species compared to its ligand and in this instance, appears to be valid as the charge distribution of the carbon ligands is more negative than that of the nitrogen central species. However, the image shown below is not entirely accurate as the electron density surrounding the nitrogen species. A more accurate image would rather show the positive charge for each individual hydrogen atom since this is really where the electron density is lowest, thus the charge value is the highest.

Ng611 (talk) 21:53, 20 May 2018 (BST) This is a good explanation, well done.

The theoretical charge distribution of an NR₄⁺

MO diagrams (LCAO and real)

Ng611 (talk) 21:55, 20 May 2018 (BST) Where are these??

[P(CH₃)₄]⁺

A [P(CH₃)₄]⁺ molecule

Ng611 (talk) 22:00, 20 May 2018 (BST) This is NMe4, not PMe4.

P-C Bond length = 1.816(69-72) A

Tetrahedral Bond Angle = 109.468^o

Key info for [P(CH₃)₄]⁺ after optimisation

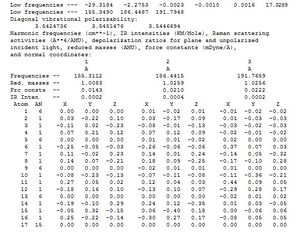

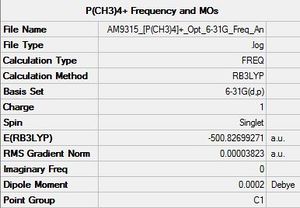

Key info for [P(CH₃)₄]⁺ after optimisation and frequency analysis

Log of information for [P(CH₃)₄]⁺ optimised using the method 6-31G and then frequency analysed

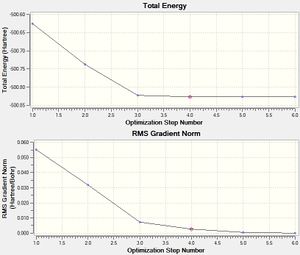

The first graph gives the energy of [P(CH₃)₄]⁺ at each step of the optimisation. The second graph gives the gradient of the energy of the optimisation at each step of the optimisation

The first graph which shows the effects of optimisation against energy shows how the optimisation of the cation succeeds in achieving an energy minima where the cation is its most stable configuration. The frequency analysis further stabilizes the cation as can be shown when comparing the energy before and after frequency analysis.

Energy after optimisation = -500.82292956

Energy after optimisation and frequency analysis = -500.82699271

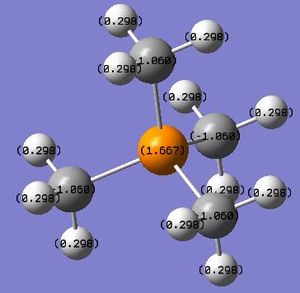

Charge distribution for [P(CH₃)₄]⁺ molecule

Charge of phosphorus= 1.667.

Charge of carbon atoms of methane = -1.050

Charge of hydrogen atoms of methane = 0.298

Unlike the nitrogen example, one would expect that phosphorous would have a higher charge as it is less electronegative than carbon thus one would expect that the electron density to be closer to the carbons of methane hence why they have a lower charge. The effect of this is that the positive charge is more likely to be found closer to the phosphorus, meaning this will more accurately represent what the theoretical image shown above. The fact that the phosphonium appears more ionic means that it can more effectivley couple to anionic liquids thus making it have a higher melting point compared to an equivalent ammonium salt e.g. tetramethlyl ammonium iodide has a mp of 280^oC^[1] and tetramethylphosphonium iodide has a melting point of around 325^oC^[2]. This is probably due to the fact that phosphorus is softer than nitrogen, thus forms stronger dative bonds, and as the charge is more dispersed, it means that it is a more effective cationic solvent.

Ng611 (talk) 22:00, 20 May 2018 (BST) Again, good discussion. Well done.
