Rep:Mod:01566447
NH3 molecule
Information on optimised NH3 molecule
| Ammonia or Nitrogen trihydride | ||||
|---|---|---|---|---|
| ||||
| Calculation method: | RB3LYP | |||
| Basis set: | 6-31GP(d,p) | |||
| Final Energy: | -56.55777 au | |||
| Point group: | C3v | |||
| Optimised N-H bond length: | (1.02 ± 0.01)Å | |||
| Optimised H-N-H bond angle: | (106 ± 1)° | |||
| NBO charge on N atom | -1.125 | |||
| NBO charge on H atom | +0.375 | |||
Nitrogen is more electronegative than Hydrogen, thus it is expected to have a negative charge while the Hydrogen atoms will have positive charges.
Item Value Threshold Converged? Maximum Force 0.000004 0.000450 YES RMS Force 0.000004 0.000300 YES Maximum Displacement 0.000072 0.001800 YES RMS Displacement 0.000035 0.001200 YES
The optimisation file is linked to here
NH3 Vibrations
| Wavenumber cm-1 | Symmetry | Intensity arbitrary units | Bending or bond stretch | Image |
|---|---|---|---|---|
| 1090 | A1 | 145 | Bending |
|
| 1694 | E | 13.6 | Bending |
|
| 1694 | E | 13.6 | Bending |
|
| 3461 | A1 | 1.06 | Bond stretch |
|
| 3590 | E | 0.271 | Bond stretch |
|
| 3590 | E | 0.271 | Bond stretch |
|
Based on the 3N-6 rule, 6 modes of vibrations are expected from an NH3 molecule. Modes with the same wavenumber are degenerate. Thus, the 2 modes of vibration corresponding to a wavenumber of 1694 cm-1, as well as the 2 modes of vibration corresponding to a wavenumber of 3590 cm-1 are degenerate. The mode of vibration with wavenumber of 1090 cm-1 is known as the "umbrella" mode. The highly symmetric mode of vibration is the one corresponding to a wavenumber of 3461 cm-1. Therefore, in an experimental spectrum of gaseous ammonia, there would be 4 bands shown on the spectrum, but only 2 bands will be visible because the other 2 bands' intensity are too low to be seen on the spectrum.
N2 molecule
Information on optimised N2 molecule
| Nitrogen molecule | ||||
|---|---|---|---|---|
| ||||
| Calculation method: | RB3LYP | |||
| Basis set: | 6-31GP(d,p) | |||
| Final Energy: | -109.52413 au | |||
| Point group: | Dh | |||
| Optimised N-N bond length: | (1.11 ± 0.01)Å | |||
| NBO charge on N atom | 0 | |||
N2 is a homodiatomic molecule, thus charge on either of the Nitrogen atoms is expected to be 0.
Item Value Threshold Converged? Maximum Force 0.000001 0.000450 YES RMS Force 0.000001 0.000300 YES Maximum Displacement 0.000000 0.001800 YES RMS Displacement 0.000000 0.001200 YES
The optimisation file is linked to here
N2 Vibrations
| Wavenumber cm-1 | Symmetry | Intensity arbitrary units | Bending or bond stretch | Image |
|---|---|---|---|---|
| 2457 | SGG | 0 | Bond stretch |
|
 | ||||
Since N2 is a linear molecule, the possible number of modes of vibration is given by 3N-5 rule, where N is the number of atoms in the molecule. 1 mode of vibration is expected from an N2 molecule. The only mode of vibration is symmetrical. No bands are expected to be seen on its spectrum because there is no change in dipole moment.
H2 molecule
Information on optimised H2 molecule
| Hydrogen molecule | ||||
|---|---|---|---|---|
| ||||
| Calculation method: | RB3LYP | |||
| Basis set: | 6-31GP(d,p) | |||
| Final Energy: | -1.17854 au | |||
| Point group: | Dh | |||
| Optimised H-H bond length: | (0.74 ± 0.01)Å | |||
| NBO charge on N atom | 0 | |||
H2 is a homo-diatomic molecule, thus charge on either of the Hydrogen atoms is expected to be 0.
Item Value Threshold Converged? Maximum Force 0.000000 0.000450 YES RMS Force 0.000000 0.000300 YES Maximum Displacement 0.000000 0.001800 YES RMS Displacement 0.000001 0.001200 YES
The optimisation file is linked to here
H2 Vibrations
| Wavenumber cm-1 | Symmetry | Intensity arbitrary units | Bending or bond stretch | Image |
|---|---|---|---|---|
| 4466 | SGG | 0 | Bond stretch |
|
 | ||||
Since H2 is a linear molecule, the possible number of modes of vibration is given by 3N-5 rule, where N is the number of atoms in the molecule. 1 mode of vibration is expected from a H2 molecule. The only mode of vibration is symmetrical. No bands are expected to be seen from its spectrum because there is no change in dipole moment.
H2 in Transition metal complexes
Using Conquest, I found Chloro-(dichloro(methyl)silyl)-bis(tricyclohexylphosphine)-(dihydrogen)-ruthenium structure, HIHVIE. The link to its structure is: https://www.ccdc.cam.ac.uk/structures/Search?Ccdcid=HIHVIE&DatabaseToSearch=Published , it has a H-H distance of 1.050Å. Then, Dihydrogen-(dihydrogenbis(3,5-bis(trifluoromethyl)pyrazolyl)-borate-H,N)-bis(tri-isopropylphosphine)-ruthenium structure, ABASUR. The link to its structure is: https://www.ccdc.cam.ac.uk/structures/Search?Ccdcid=ABASUR&DatabaseToSearch=Published , it has a H-H bond length of 1.000Å. Both are greater than the bond lengths calculated using Gaussian which is around 0.74Å, this could be due to delocalisation factors[1] in HIHVIE, or due to presence of more electron-rich ligands that induces a lengthening of the H-H bond in ABASUR.[2] Coordination with transition metals could have pulled electron density away from the Hydrogen atoms and away from the H-H bond, resulting in the weakening and lengthening of the H-H bond as well.
Haber-Bosch process
| Energy/au | |
|---|---|
| E(NH3) | -56.55777 |
| 2*E(NH3) | -113.11554 |
| E(N2) | -109.52413 |
| E(H2) | -1.17854 |
| 3*E(H2) | -3.53562 |
| ΔE=2*E(NH3)-[E(N2)+3*E(H2)] | -0.05579 |
ΔE in kJ mol-1 = 2625.5(-0.0557905) = -146.5 kJ mol-1. ΔE is energy required for converting hydrogen and nitrogen gas into ammonia gas. Ammonia gas is more stable because the chemical reaction of converting nitrogen and hydrogen into ammonia is exothermic, hence the ammonia product is lower in energy and more stable than the gaseous reactants.
CO molecule
Information on optimised CO molecule
| Carbon monoxide molecule | ||||
|---|---|---|---|---|
| ||||
| Calculation method: | RB3LYP | |||
| Basis set: | 6-31GP(d,p) | |||
| Final Energy: | -113.30945314 au | |||
| Point group: | Dh | |||
| Optimised C-O bond length: | (1.14 ± 0.01)Å | |||
| NBO charge on C atom | +0.506 | |||
| NBO charge on O atom | -0.506 | |||
Oxygen is more electronegative than carbon, thus a negative charge on O is expected whereas a positive charge is expected for C.
Item Value Threshold Converged? Maximum Force 0.000007 0.000450 YES RMS Force 0.000007 0.000300 YES Maximum Displacement 0.000003 0.001800 YES RMS Displacement 0.000004 0.001200 YES
The optimisation file is linked to here
CO Vibrations
| Wavenumber cm-1 | Symmetry | Intensity arbitrary units | Bending or bond stretch | Image |
|---|---|---|---|---|
| 2209 | SG | 68.0 | Bond stretch |
|
 | ||||
Since CO is a linear molecule, the possible number of modes of vibration is given by 3N-5 rule, where N is the number of atoms in the molecule. 1 mode of vibration is expected from an CO molecule. The vibration is not symmetrical, there is a change in dipole moment hence 1 band is expected to be visible on its spectrum.
CO molecular orbitals
The energy between the 2s and 2p orbitals in CO is small enough to allow for sp mixing, hence the MOs in CO are a combination of the 2s and 2p orbitals of carbon and oxygen.
[3]
| About the molecular orbital | Energy of MO/ eV | Corresponding MO on MO diagram | Image |
|---|---|---|---|
| This orbital comprises the 2s and 2pz atomic orbitals of carbon and 2s and 2pz orbitals of oxygen, with greater contribution from Oxygen, thus there is greater electron density on O. Sp mixing causes the MO to be deeper in energy. This is a bonding MO that is occupied with 2 electrons. | -1.15790 | 1σs |
|
| This orbital comprises the 2s and 2pz atomic orbitals of carbon and 2s and 2pz orbitals of oxygen, with greater contribution from Carbon, thus there is greater electron density on C. Sp mixing causes the MO to be deeper in energy. This is an antibonding MO that is occupied with 2 electrons. | -0.57004 | 2σs |
|
| This orbital comprises the 2px orbital of carbon and 2px orbital, with greater contribution from Oxygen, thus there is greater electron density on O. This is a bonding MO that is occupied with 2 electrons and is responsible for one of the pi bonds the CO molecule. The other 2 atomic orbitals which contribute to the other pi bond are the 2py orbitals of carbon and oxygen, the MO formed is degenerate to the MO formed by the 2px orbitals of carbon and oxygen. | -0.46742 | 1πp(x) |
|
| This orbital comprises the 2s and 2pz orbitals of carbon and 2s and 2pz orbitals of oxygen, with greater contribution from Oxygen. Sp mixing causes the MO to be higher in energy. This is a bonding MO occupied with 2 electrons, it is also the HOMO. | -0.37145 | 3σp(z) |
|
| This orbital comprises the 2px orbital of carbon and 2px orbital, with greater contribution from carbon, thus there is greater electron density on C. This is an antibonding MO that is unoccupied, it is also the LUMO. There is another MO which is degenerate to this MO, comprising the 2py orbital of carbon and 2py orbital of oxygen. | -0.02178 | 2πp(x) |
|
O2 molecule
Information on optimised O2 molecule
| Oxygen molecule | ||||
|---|---|---|---|---|
| ||||
| Calculation method: | RB3LYP | |||
| Basis set: | 6-31GP(d,p) | |||
| Final Energy: | -150.2574243 au | |||
| Point group: | Dh | |||
| Optimised O-O bond length: | (1.22 ± 0.01)Å | |||
| NBO charge on O atom | 0 | |||
O2 is a homo-diatomic molecule, hence the charge on either of the Oxygen atoms is expected to be 0.
Item Value Threshold Converged? Maximum Force 0.000130 0.000450 YES RMS Force 0.000130 0.000300 YES Maximum Displacement 0.000080 0.001800 YES RMS Displacement 0.000113 0.001200 YES
The optimisation file is linked to here

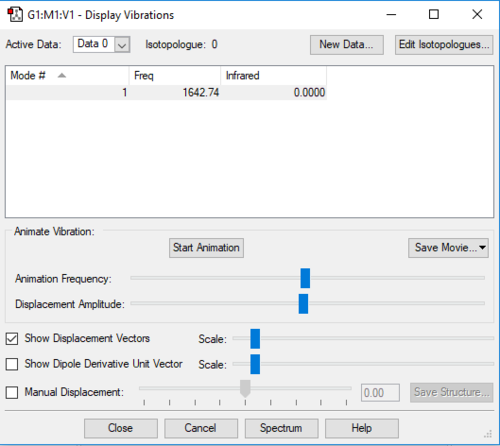

O2 Vibrations
| Wavenumber cm-1 | Symmetry | Intensity arbitrary units | Bending or bond stretch | Image |
|---|---|---|---|---|
| 1643 | SGG | 0 | Bond stretch |
|
 | ||||
Since O2 is a homo-diatomic linear molecule, the possible number of modes of vibration is given by 3N-5 rule, where N is the number of atoms in the molecule. 1 mode of vibration is expected from an O2 molecule. The vibration is symmetrical, there is no change in dipole moment hence no bands are expected on its spectrum.
O2 molecular orbitals
| About the molecular orbital | Energy of MO/ eV | Image |
|---|---|---|
| This orbital comprises the two 2s atomic orbitals from the oxygen atoms. This is a bonding MO that is occupied with 2 electrons. | -1.27663 |
|
| This orbital comprises the two 2s atomic orbitals from the oxygen atoms. This is an antibonding MO that is occupied with 2 electrons. | -0.79821 |
|
| This orbital is formed from the head-on overlap of two 2pz orbitals of the oxygen atoms. This is a bonding MO that is occupied with 2 electrons. | -0.53151 |
|
| This orbital is formed from side-on overlap of two 2px orbitals of the oxygen atoms. This is a bonding MO occupied with 2 electrons. There is another molecular orbital degenerate to this orbital, comprising two 2py orbitals from the oxygen atoms and contains 2 electrons as well. | -0.51526 |
|
| This orbital is formed from side-on overlap of two 2px orbitals of the oxygen atoms. This is an antibonding MO occupied with 1 electron. There is another molecular orbital that is degenerate to this orbital, comprising two 2py orbitals of the oxygen atoms and occupied with 1 electron. Therefore, oxygen is paramagnetic since it has 2 unpaired electrons. | -0.25018 |
|
References
- ↑ S. Lachaize et al., Organometallics, 2007, 26, 3713-3721
- ↑ V. Rodriguez et al.,Organometallics 2000, 19, 2916-2926
- ↑ Chemistry Stack Exchange, https://chemistry.stackexchange.com/questions/51262/how-to-rationalise-with-mo-theory-that-co-is-a-two-electron-donor-through-carbon, (accessed March 2019)
