NH3 Structural Information

Vibrations of NH3

N-H bond length: 1.02 Å

H-N-H bond angle: 106°

Structure: trigonal pyramidal

NH3

Gaussian Optimisation

Calculation method: RB3LYP

Basis set: 6-31H(d.p)

Final energy E in atomic units: -56.55776873 au

The point group of NH3: C3V

Display Vibrations


         Item               Value     Threshold  Converged?
Maximum  Force            0.000004     0.000450     YES
 RMS     Force            0.000004     0.000300     YES
 Maximum Displacement     0.000072     0.001800     YES
 RMS     Displacement     0.000035     0.001200     YES

The optimisation file is linked to File:HHE NH3 OPTF-POP.LOG

Wavenumber, Symmetry and Intensity of Vibrations

Number of modes using 3N-6: 3×4-6=6

Degenerate modes: 1694 cm-1, 3590 cm-1

Bending: 1090, 1694 cm-1

Stretching: 3461, 3590 cm-1

Highly symmetric: 3461 cm-1

Umbrella mode: 1090 cm-1

IR bands: 2 bands expected as two of them are degenerate and 3 of them are of 0 or negligible intensity.

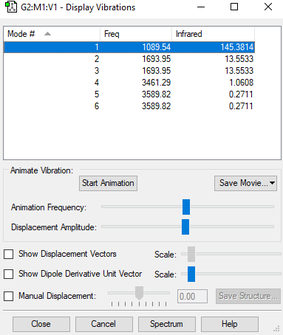

Vibrations
wavenumber (cm-1) 1090 1694 1694 3461 3590 3590
symmetry A1 E E A1 E E
intensity (arbitrary units) 145 14 14 1 0 0

Charge Analysis

N is expected to be negative and H is expected to be positive because N is more electronegative than H and pulls electrons more towards N itself.
Charges on NH3

N2 Structural Information

Vibration of N2

Bond length: 1.11 Å

Structure: linear

N2

Gaussian Optimisation

Calculation method: RB3LYP

Basis set: 6-31G(d.p)

Final energy E in atomic units: -109.52412868 au

The point group of NH3: D∞h

Display Vibrations

         Item                Value    Threshold  Converged?
 Maximum Force            0.000145     0.000450     YES
 RMS     Force            0.000145     0.000300     YES
 Maximum Displacement     0.000045     0.001800     YES
 RMS     Displacement     0.000064     0.001200     YES

The optimisation file is linked to File:HHE N2 OPTF POP.LOG

Wavenumber, Symmetry and Intensity of Vibrations

Number of modes using 3N-5: 3×2-5=1

Degenerate modes: 0

Bending: 0

Stretching: 1

IR bands:0 because there is no change in dipole moment of the molecule in the stretching mode

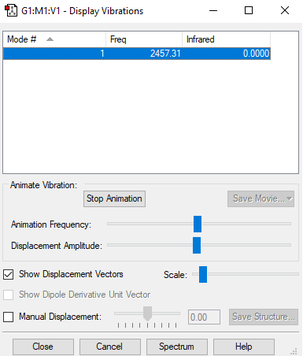

Vibrations
wavenumber (cm-1) 2457
symmetry SGG
intensity (arbitrary units) 0

Charge Analysis

Charge on N2

The charges are expected to be zero because there is no difference in electronegativities between the 2 atoms.

H2 Structural Information

Vibration of H2

Bond length: 0.74 Å

Structure: linear

H2

Gaussian Optimisation

Calculation method: RB3LYP

Basis set: 6-31G(d.p)

Final energy E in atomic units: -1.17853930 au

Point group: D∞h

Display vibrations

         Item                Value    Threshold  Converged?
 Maximum Force            0.000211     0.000450     YES
 RMS     Force            0.000211     0.000300     YES
 Maximum Displacement     0.000278     0.001800     YES
 RMS     Displacement     0.000393     0.001200     YES

The optimisation file is linked to File:HHE H2 OPTF POP.LOG

Wavenumber, Symmetry and Intensity of Vibrations

Number of modes using 3N-5: 3×2-5=1

Degenerate modes: 0

Bending: 0

Stretching: 1

IR bands: 0 because there is no change in dipole moment of the molecule in the stretching mode

Vibrations

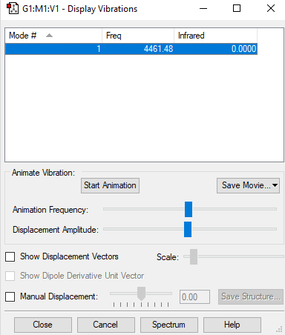

wavenumber (cm-1) 4461
symmetry SGG
intensity (arbitrary units) 0

Charge Analysis

Charge on H2

The charges are expected to be zero because there is no difference in electronegativities between the 2 atoms.

Transition Metal Complex

Identifier: JISZOA[1]

Calculated bond length: 0.74 Å

Bond length in complex: 1.03 Å

In this complex, H2 donates electrons to the central metal atom and the bond energy of H2 is lower and therefore the bond length is longer.[1]

Haber-Bosch Process

E(NH3)= -56.5577687 au

2*E(NH3)= -113.1155374 au

E(N2)= -109.5241287 au

E(H2)= -1.1785393 au

3*E(H2)= -3.5356179 au

ΔE=2*E(NH3)-[E(N2)+3*E(H2)]= -0.0557909 au

= -146.8 kJmol-1

The ammonia product is more stable because the reaction is exothermic.

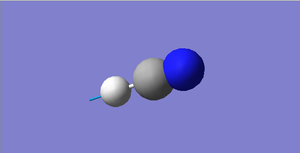

HCN Structural Information

Vibrations of HCN

H-N bond length: 1.07 Å

C≡N bond length: 1.16 Å

H-C≡N bond angle: 180 °

HCN

Gaussian Optimisation

Calculation method: RB3LYP

Basis set: 6-31G(d.p)

Final energy E in atomic units: -93.42458151 au

The point group of NH3: C∞v

Display vibrations


         Item               Value     Threshold  Converged?
 Maximum Force            0.000179     0.000450     YES
 RMS     Force            0.000094     0.000300     YES
 Maximum Displacement     0.000145     0.001800     YES
 RMS     Displacement     0.000101     0.001200     YES

The optimisation file is linked to File:HHE HCN OPTF POP.LOG

Wavenumber, Symmetry and Intensity of Vibrations

Number of modes using 3N-5: 3×3-5=4

Degenerate modes: 769 cm-1

Bending: 769 cm-1

Stretching: 2214 and 3476 cm-1

IR bands: 3 because all vibrations cause a change in dipole moment and 2 of them are degenerate.

Vibrations

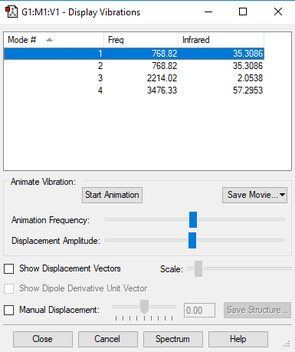

wavenumber (cm-1) 769 769 2214 3476
symmetry PI PI SG SG
intensity (arbitrary units) 35 35 2 57

Charge Analysis

Charges on HCN

Nitrogen is the most electronegative atom of all three atoms and it is expected to have a negative charge. Carbon is more electronegative than hydrogen and therefore the charge on carbon is less positive than that on hydrogen.

Molecular Orbitals

Orbital 1

Energy:-14.36052 au

This orbital is the core 1s orbital on N which is too deep in energy to be involved in bonding. Therefore it does not contribute to the bonding in the molecule. It is occupied by 2 electrons.

Orbital 2

Energy:-10.24613 au

This is the core 1s orbital on C which is also too deep in energy to be involved in bonding. This atomic orbital does not contribute to the bonding in the molecule either. This orbital is also occupied by 2 electrons.

Orbital 3

Energy: -0.91992 au

This is a bonding molecular orbital composed of 2s atomic orbitals on N and C and a 1s atomic orbital on H. It is involved in bonding as its energy is not as deep in energy as the last 2 orbitals. All atomic orbitals are in phase and the electron density therefore encompasses the whole molecule with no nodal plane. It is occupied by 2 electrons.

Orbital 7

Energy: -0.35936 au

This is the bonding molecular orbital made up of 2py atomic orbitals on N and C. The 2 orbitals combine in phase and produce a bonding pi orbital. The hydrogen 1s atomic orbital is not involved as there is a nodal plane across the bond. It is also the HOMO, which is filled with 2 electrons.

Orbital 8

Energy: 0.01927 au

This is the LUMO and it is an antibonding orbital. It is formed by the 2px atomic orbitals on N and C, the hydrogen 1s atomic orbital is not involved for the same reason stated above. This molecular antibonding orbital is orthogonal to the one above as the px and py are orthogonal to each other. It is positioned this way just to be seen more clearly. It is empty and therefore does not contribute to the bonding in the molecule.

Independent Work

CH4 Structural Information

C-H bond length: 1.09 Å

H-C-H bond angle: 109°

Structure: tetrahedral

CH4

Gaussian Optimisation

Calculation method: RB3LYP

Basis set: 6-31H(d.p)

Final energy E in atomic units: -40.52401404 au

The point group of CH4: Td

Display Vibrations


         Item               Value     Threshold  Converged?
 Maximum Force            0.000063     0.000450     YES
 RMS     Force            0.000034     0.000300     YES
 Maximum Displacement     0.000179     0.001800     YES
 RMS     Displacement     0.000095     0.001200     YES

The optimisation file is linked to File:HHE CH4 OPTF.LOG

Wavenumber, Symmetry and Intensity of Vibrations

Number of modes using 3N-6: 3×5-6=9

Degenerate modes: 1356 cm-1, 1579 cm-1, 3162 cm-1

Bending: 1356 cm-1, 1579 cm-1

Stretching: 3046cm-1, 3162 cm-1

IR bands: 2 as 5 of them are degenerate and 3 of them are of 0 intensity.

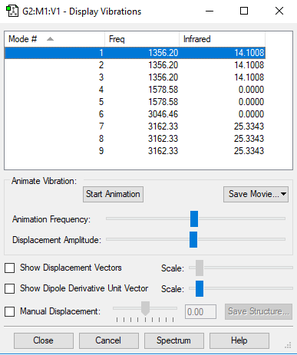

Vibrations of CH4
Vibrations
wavenumber (cm-1) 1356 1356 1356 3046 1579 1579 3162 3161 3162
symmetry T2 T2 T2 A1 E E T2 T2 T2
intensity (arbitrary units) 14 14 14 0 0 0 25 25 25

Charge Analysis

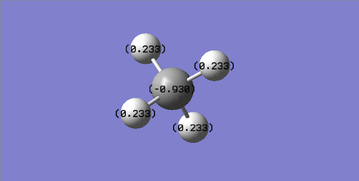

Charges on CH4
C is expected to be negative and H is expected to be positive because C is more electronegative than H and pulls electrons more towards C itself.

Reference

  1. Chaudret, B., Chung, G., Eisenstein, O., Jackson, S., Lahoz, F. and Lopez, J. (1991). Journal of the American Chemical Society, 113(6), pp.2314-2316.
