Rep:MOD:spk15TSEx2

Exercise 2: Reaction of Cyclohexadiene and 1,3-Dioxole

Reaction Scheme

Cyclohexadiene reacts with Dioxole in a concerted, suprafacial [4+2] cycloaddition according to the mechanism shown below in Figure 5 to form two products- the exo and endo products.

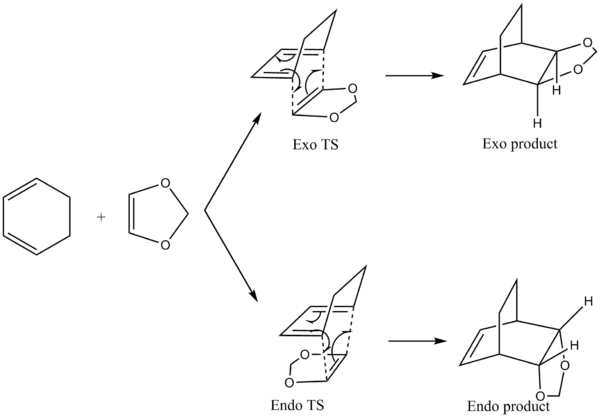

Figure 5: Mechanism of reaction between cyclohexadiene and 1,3-dioxole

Jmol Files

Reactants	Transition States	Product
Cyclohexadiene	Exo TS	Exo product
Dioxole	Endo TS	Endo product

Single Point Energy Calculation

In order to determine if the reaction between cyclohexadiene and 1,3-dioxole proceeded via normal or inverse electron demand, the relative levels of the HOMO and LUMO of the reactants were compared by performing a single point energy calculation. This allowed the reactants to be studied on the same potential energy surface and the energies of their MOs to be compared more accurately. In this reaction, the HOMO of 1,3-dioxole, the dienophile, was found to be higher than the HOMO of cyclohexadiene, the diene, as shown below. This indicates the reaction proceeds via inverse electron demand.

(Fv611 (talk) Good discussion here)

Cyclohexadiene	Relative Energies of the HOMO and LUMO of the Reactants	1,3-Dioxole
LUMO of Cyclohexadiene		LUMO of 1,3-Dioxole
HOMO of Cyclohexadiene		HOMO of 1,3-Dioxole

MO Analysis of Reaction

(Fv611 (talk) This MO diagram is very good, but you are still missing the symmetry labels for the TS MOs. Also, you have not discussed at all the difference between the endo and exo case in terms of MO relative energies.)

Occupied and Unoccupied Orbitals of the TS

	Occupied Orbital	HOMO	LUMO	Unoccupied Orbital
Exo
Endo

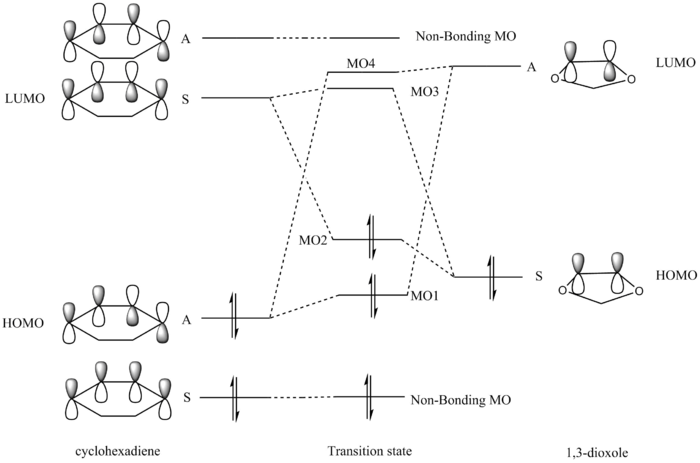

Cyclohexadiene	MO diagram for the formation of the Cyclohexadienediene/1,3-Dioxole transition state	1,3-Dioxole
LUMO of Cyclohexadiene		LUMO of 1,3-Dioxole
HOMO of Cyclohexadiene		HOMO of 1,3-Dioxole

In this inverse electron demand [4+2] cycloaddition reaction, the 1,3-dioxole acts as a electron rich dienophile since the oxygen atoms can donate their lone pair of electrons into the pi system of the double bond. Hence, the HOMO of the 1,3-dioxole is raised higher than the HOMO of the dienophile and is high enough in energy to interact with the LUMO of the diene (cylohexadiene). MO1 and MO4 are a bonding/antibonding pair formed from the overlap of the HOMO of cyclohexadiene and the LUMO of the 1,3-dioxole. MO2 and MO3 are another bonding/antibonding pair formed from the overlap of the HOMO of the 1,3-dioxole and the LUMO of cyclohexadiene.⁶

Comparing a normal and inverse electron demand [4+2] cycloaddition

Normal	Inverse

Reaction Dynamics

The Gibbs Free energies of the reactants, products and transition states were tabulated at the PM6 and B3LYP level, and are shown in Figure 6 below.

Figure 6: Absolute Energies of reactants, transition states and products

The reaction energy and reaction barrier were calculated according to the equations shown below:

Reaction Energy = Energy of Products - Energy of Reactants

Reaction Barrier = Energy of Transition State - Energy of Reactants

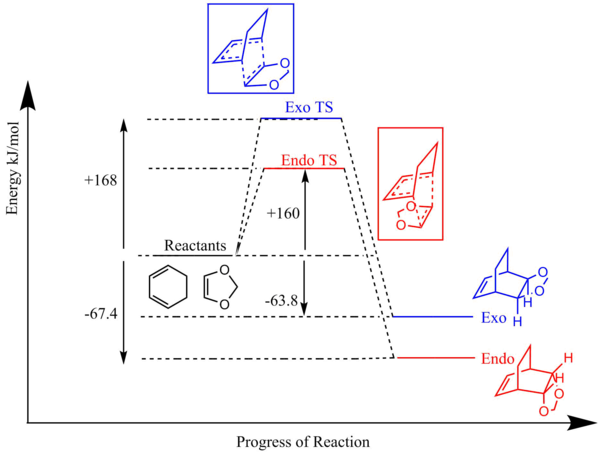

Figure 7: Reaction profile diagram

According to the reaction profile (Figure 7), the endo product is both kinetically and thermodynamically favoured. The endo activation energy is lower than the exo activation energy which means that the reactants will form the endo transition state faster than the exo transition state. The endo transition state is lower in energy than the exo transition state since there are secondary orbital interactions between the butadiene pi orbitals and the p orbitals of the oxygen atoms which is discussed more below. This lowers the energy of the endo transition state. The endo Diels-Alder product is also lower in energy than the exo product which indicates that the endo product is more stable and hence thermodynamically favoured. The endo product is lower in energy as there is greater steric clash in the exo product between the CH₂ hydrogens and the oxygen atoms as shown in Figure 8 below.⁷ On the other hand, in the endo product with the dioxole in an axial position, there is much less steric clash between the CH₂ hydrogens and the other hydrogen atoms since hydrogen has a much smaller VDW radius than oxygen. Furthermore, the endo product is more thermodynamically preferred as the former 1,3-Dioxole component is anti to the carbon bridge group rather than gauche in the exo product. There is reduced steric hindrance in the molecule as the two larger groups are anti to one another. This is shown in Figure 9.

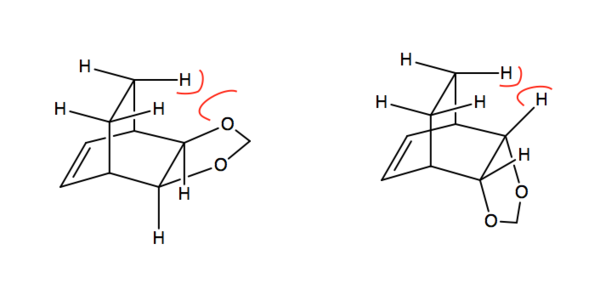

Figure 8: Steric clash in exo and endo products

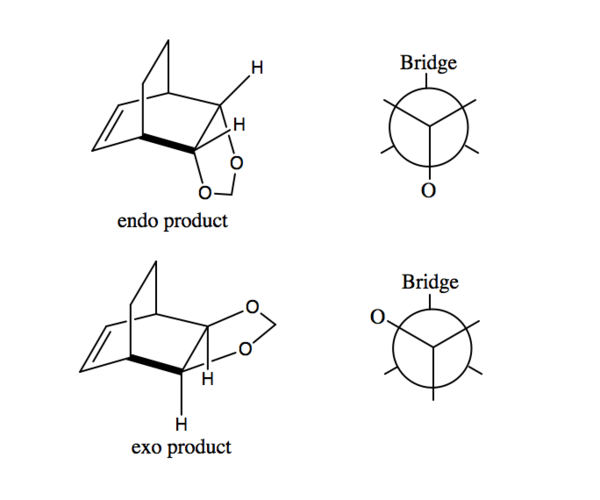

Figure 9: Newman projection of endo and exo products viewed along the bolded line

Secondary Orbital Interactions

HOMO of Exo TS	HOMO of Endo TS

In both the endo and exo transition states, there are primary orbital interactions between the pi orbitals of cyclohexadiene and dioxole which result in the formation of the new sigma bonds. In the endo transition state, there are additional secondary orbital interactions between the p-orbitals of the cyclohexadiene and the non-bonding p-orbitals of the oxygen atoms in dioxole, this stabilises the transition state and results in the endo transition state forming faster, and making the endo product more kinetically favourable.⁸ This is shown more clearly in Figure 10 below.

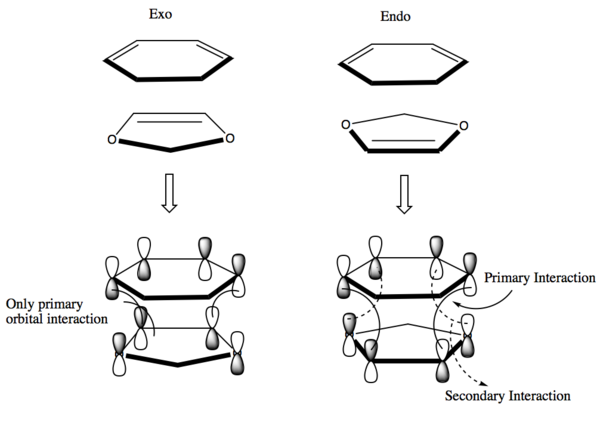

Figure 10: Possibility of secondary orbital interactions

Nf710 (talk) 22:05, 8 February 2018 (UTC) This was a really good section, well done you have gone beyond the script. the part about the reactant MOs was very good.
