NH3
Optimisation
Molecule: NH3
Calculation method: RB3LYP
Basis set: 6-31G(d,p)
E(RB3LYP) (au): -56.55777
RMS gradient (au): 0.00000323
Point group: C3V
N-H bond distance: 1.02Å
H-N-H bond angle: 105.7°
Item Value Threshold Converged? Maximum Force 0.000006 0.000450 YES RMS Force 0.000004 0.000300 YES Maximum Displacement 0.000014 0.001800 YES RMS Displacement 0.000009 0.001200 YES
Jmol dynamic image of NH3 |
The optimisation file is liked to here
Frequency Analysis

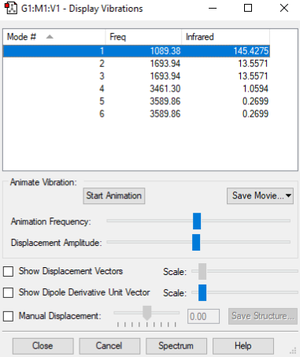

| wavenumber cm-1 | 1089 | 1694 | 1694 | 3461 | 3590 | 3590 |
| symmetry | A1 | E | E | A1 | E | E |
| intensity arbitrary units | 145 | 14 | 14 | 1 | 0 | 0 |
| image |  |
 |
 |
 |
 |
|
How many modes do you expect from the 3N-6 rule?
6
Which modes are degenerate (ie have the same energy)?
2 modes with frequency of 1694 cm-1 and 2 modes with frequency of 3590 cm-1
Which modes are "bending" vibrations and which are "bond stretch" vibrations?
bending vibration: 1089 cm-1, 1694 cm-1, 1694 cm-1
bond stretch vibration: 3461 cm-1, 3590 cm-1, 3590 cm-1
Which mode is highly symmetric?
3461 cm-1 and 1089 cm-1
One mode is known as the "umbrella" mode, which one is this?
1089 cm-1
How many bands would you expect to see in an experimental spectrum of gaseous ammonia?
2. Theoretically there should be 4 bands due to 2 degenerate modes, but due to the low intensity of the bond stretch vibration (rel. intensity=1 and 0), 2 bond stretch bands cannot be seen in the experimental spectrum.
Charge Analysis
| N-atom | H-atoms | image |
|---|---|---|
| -1.125 | 0.375 |
|
It is expected that N-atom should have a partially negative charge whereas H-atoms should have partially positive charges, because nitrogen is more electronegative than hydrogen so the electron density on N-atom is higher than the one on H-atoms.
N2
Optimisation
Molecule: N2
Calculation method: RB3LYP
Basis set: 6-31G(d,p)
E(RB3LYP) (au): -109.52413
RMS gradient (au): 0.00000060
Point group: N∞h
N-N bond distance: 1.11Å
For lack of 3 atoms, the bond angle cannot be calculated.
Item Value Threshold Converged? Maximum Force 0.000001 0.000450 YES RMS Force 0.000001 0.000300 YES Maximum Displacement 0.000000 0.001800 YES RMS Displacement 0.000000 0.001200 YES
Jmol dynamic image of N2 |
The optimisation file is liked to here
Frequency Analysis

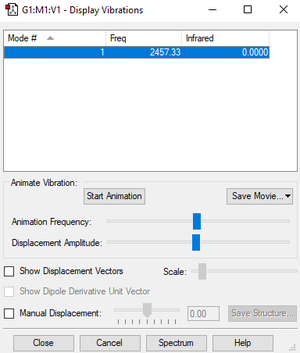

| wavenumber cm-1 | 2457 |
| symmetry | SGG |
| intensity arbitrary units | 0 |
| image |
|
Charge Analysis
| N-atom | N-atom |
|---|---|
| 0.000 | 0.000 |
It is expected that the atoms should have no partial charge because 2 same atoms have the same elctronegativities.
H2
Optimisation
Molecule: H2
Calculation method: RB3LYP
Basis set: 6-31G(d,p)
E(RB3LYP) (au): -1.17854
RMS gradient (au): 0.00000017
Point group: N∞h
H-H bond distance: 0.74Å
For lack of 3 atoms, the bond angle cannot be calculated.
Item Value Threshold Converged? Maximum Force 0.000000 0.000450 YES RMS Force 0.000000 0.000300 YES Maximum Displacement 0.000000 0.001800 YES RMS Displacement 0.000001 0.001200 YES
Jmol dynamic image of H2 |
The optimisation file is liked to here

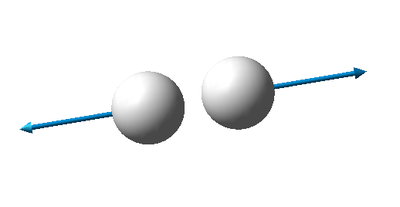

Frequency Analysis
| wavenumber cm-1 | 4466 |
| symmetry | SGG |
| intensity arbitrary units | 0 |
| image |
|
Charge Analysis
| H-atom | H-atom |
|---|---|
| 0.000 | 0.000 |
It is expected that the atoms should have no partial charge because 2 same atoms have the same elctronegativities.
Crystal Structure Comparison

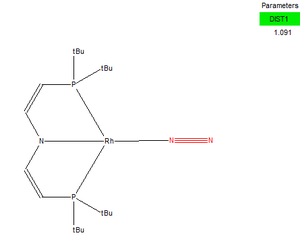

The CDDC link to the molecule can be found at:[[1]]
The bond length (1.09Å) is slightly shorter the optimised one (1.11Å) due to the following reasons:
1. From the computational perspective, Gaussian calculates the bond length of the molecule in gas phase, while the experimental bond length is measured in the crystalline structure of the molecule; therefore, two bond lengths will be different.
2. From the experimental perspective, it can be seen from the 3D structure of this molecule that N≡N is a bit stretched and exposed to the outside of the whole molecule; so, due to packing effects of the crystal structure, the bond length may be shortened.
Haber-Bosch Process Energy Calculation
ENH3= -148492.43 kJ/mol
2*ENH3= -296984.86 kJ/mol
EN2= -287555.62 kJ/mol
EH2= -3094.26 kJ/mol
3*EH2= -9282.78 kJ/mol
ΔE=2*ENH3-[EN2+3*EH2]= -146.46 kJ/mol
Ammonia product is more stable than the reactants because the reaction is exothermic and releases energy (i.e. The energy of the reactants is greater than that of the product.).
[CN]-
Optimisation
Molecule: [CN]-
Calculation method: RB3LYP
Basis set: 6-31G(d,p)
E(RB3LYP) (au): -92.82453
RMS gradient (au): 0.00000704
Point group: C∞v
C-N bond distance: 1.18Å
For lack of 3 atoms, the bond angle cannot be calculated.
Item Value Threshold Converged? Maximum Force 0.000012 0.000450 YES RMS Force 0.000012 0.000300 YES Maximum Displacement 0.000005 0.001800 YES RMS Displacement 0.000008 0.001200 YES
Jmol dynamic image of [CN]- |
The optimisation file is liked to here

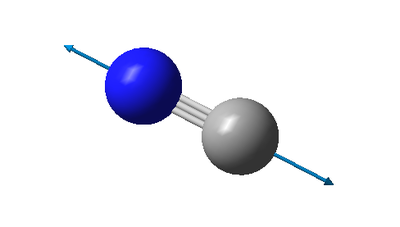

Frequency Analysis

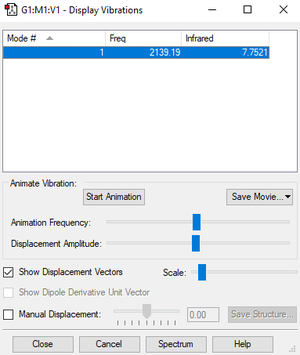

| wavenumber cm-1 | 2139 |
| symmetry | SG |
| intensity arbitrary units | 8 |
| image |
|
Charge Analysis
| N-atom | C-atom | image |
|---|---|---|
| -0.754 | -0.246 |
|
It is expected that N-atom should possess more negative charge than C-atom, for nitrogen is more electronegative than carbon. This charge distribution also converges with the overall charge being -1.
Molecular Orbitals
| MO | Energy/eV | Description |
 |
-0.56195 | This is an occupied s-p mixing bonding orbital contributed mainly by 2s AOs of C-atom and N-atom and partly by 2p AOs of C-atom and N-atom. The MO shape is not a perfect sphere and is slightly distorted due to s-p mixing. The energy is higher than the core orbitals (around -10 au), but is over 50 times deeper than the third and fourth MOs; therefore, although this is a valence orbital, it is relatively deep in energy, stabilised by s-p mixing interactions. |
 |
-0.10626 | This is an occupied anti-bonding orbital contributed by 2p and 2s AOs of C-atom and N-atom. The MO shape is also slightly distorted due to s-p mixing. The energy is higher than the bonding orbital above, but is also stabilised by s-p mixing interactions. |
 |
-0.01696 | This is an occupied π bonding orbital contributed by 2p AOs of C-atom and N-atom. The energy is almost non-negative (high in energy) and contributes to part of the triple bond in [CN]- |
 |
-0.01696 | This is an occupied π bonding orbital contributed by 2p AOs of C-atom and N-atom. As the energies of this MO and the MO above are the same, these two MOs are degenerate, as there are 2 pairs of 2pAO interactions perpendicular to each other. |
 |
0.01857 | This is an occupied s-p mixing bonding orbital contributed by 2p and 2s AOs of C-atom and N-atom resulting in a distorted shape of the MO. This MO is in the HOMO region, as it is the last occupied orbital in the MO diagram. The energy is positive (very high in energy), which indicates the reason why [CN]- is highly reactive and often used as a nucleophile. It is noticeable that the positive value indicates that [CN]- is very unstable and the electrons filled in this MO are unfavoured to stay in this orbital. However, experimentally [CN]- is relatively stable, which implies that the calculation method of cyanide ion may be not accurate enough. |
Further Analysis

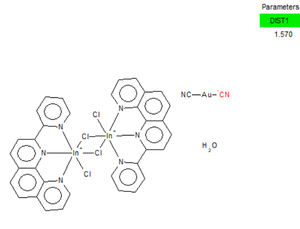

The CDDC link to the molecule can be found at:[[2]]
The bond length (1.57Å) is much longer than the optimised one (1.18Å) probably due to the following reasons:
1. From the computational perspective, Gaussian calculates the bond length of the molecule in gas phase, while the experimental bond length is measured in the crystalline structure of the molecule; therefore, two bond lengths will be different.
2. From the experimental perspective, due to the strong interactions between gold and [CN]-, the π* orbital in [CN]-, for instance, may overlap with the dxy orbital in Au; however, backbonding may also exist when the dz2 overlaps with pz orbital in [CN]- due to symmetry, which may reduce the bond strength between Au and [CN]-.
It is interesting that although [CN]- and N2 are isoelctronic, but their bonding behaviour can be very different in different complexes.
