Project molecule

NH3-ammonia

NH3 optimisation

N-H bond distance= 1.02 Å

H-N-H bond angle= 106°

The literature value of the bond N-H bond distance of NH3 is 1.008 ± 0.004 Å. ^[1] This is about the same value as the value found with Gaussian, the slight variation might be because accuracy to of 0.01 Å of the program.

Information NH3 optimisation
Calculation method	RB3LYP
Basis set	6-31G(d,p)
Final energy (a.u.)	-56.55776873
RMS gradient (a.u.)	0.00000485
Point group	C3V

Item tabel

         Item               Value     Threshold  Converged?
 Maximum Force            0.000004     0.000450     YES
 RMS     Force            0.000004     0.000300     YES
 Maximum Displacement     0.000072     0.001800     YES
 RMS     Displacement     0.000035     0.001200     YES

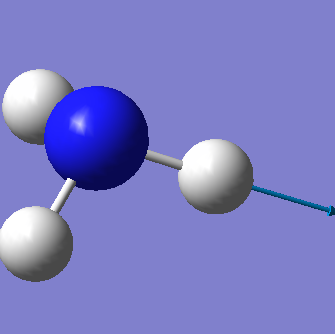

NH3

The final file of the optimisation is available here

Vibrations and charges

Vibrational frequency analysis

caption
Wavenumber cm-1	1090	1694	1694	3461	3590	3590
Symmetry	A1	E	E	A1	E	E
Intensity arbitrary units	145	14	14	1	0	0

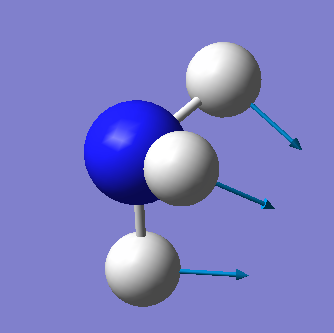

From the 3N-6 rule we would expect 6 vibrational modes (3x4-6=6). There are 3 bending vibrations (1090 cm-1, 1694 cm-1, 1694 cm-1) and 3 stretching vibrations (3461 cm-1, 3590 cm-1, 3590 cm-1). However, there are 2 degenerate bending vibrations (1694 cm-1) and 2 degenerate stretching vibrations (3590 cm-1).

The stretching vibration at 3461 cm-1 is highly symmetric because the point group of the molecule does not change during the vibration. The bending vibration at 1090 cm-1 is known as the "umbrella" mode.

In an experimental spectrum of gaseous ammonia we would expect to see 3 bands corresponding to the bending vibrations at 1090 cm-1 (strong band) and 1694 cm-1 and the stretching vibrations at 3461 cm-1 (weak band). Degenerate vibrations will not be observable since they are equal in energy and will therefore not be seen on the spectrum. The strecthing vibrations at 3590 cm-1 have a too weak intensity to be seen on the spectrum.

Atomic charges

Charges of NH3

The charge of the N-atom is -1.125 and the charge of each H-atom is 0.375. The negative charge on the N-atom is as expected because of the lone pair of electrons on the N-atom creating a partial negative charge. Since a NH3 molecule is neutral, the partial negative charge on the N-atom must be balanced out by positive charges of the H-atoms.

N2-nitrogen

N2 optimisation

N-N bond distance= 1.11 Å

The literature value of the N-N bond distance is 1.0975 ± 0.0001 Å. ^[1] This is the same value found using Gaussian.

Information N2 optimisation
Calculation method	RB3LYP
Basis set	6-31G(d,p)
Final energy (a.u.)	-109.52412868
RMS gradient (a.u.)	0.00000060
Point group	D*H

Item table

         Item               Value     Threshold  Converged?
 Maximum Force            0.000001     0.000450     YES
 RMS     Force            0.000001     0.000300     YES
 Maximum Displacement     0.000000     0.001800     YES
 RMS     Displacement     0.000000     0.001200     YES

N2

The final file of the optimisation is available here

Vibrations and charges

Vibrational frequency analysis

caption
Wavenumber cm-1	2457
Symmetry	SGG
Intensity arbitrary units	0

Since nitrogen is a linear molecule, it has 1 vibrational mode (3N-5=3x2-5=1). This is a stretching vibration at 2457 cm-1. However, this vibration is not visible on a spectrum because there is no change in dipole moment occuring during this vibration.

Atomic charges

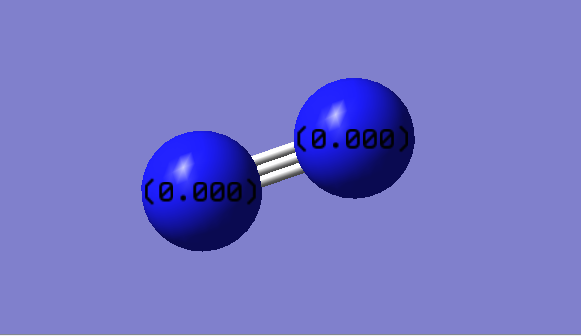

Charges of N2

The nitrogen molecule is neutral and since both atoms are the same, we expect no charge on both atoms.

H2-hydrogen

H2 optimisation

H-H bond distance= 0.74 Å

This value is exactly the same as the literature value (74 pm). ^[2]

Information H2 optimisation
Calculation method	RB3LYP
Basis set	6-31G(d,p)
Final energy (a.u.)	-1.17853930
RMS gradient (a.u.)	0.00012170
Point group	D*H

Item table

         Item               Value     Threshold  Converged?
 Maximum Force            0.000211     0.000450     YES
 RMS     Force            0.000211     0.000300     YES
 Maximum Displacement     0.000278     0.001800     YES
 RMS     Displacement     0.000393     0.001200     YES

H2

The final file of the optimisation is available here

Vibrations and charges

Vibrational frequency analysis

caption
Wavenumber cm-1	4461
Symmetry	SGG
Intensity arbitrary units	0

Since hydrogen is a linear molecule, it has 1 vibrational mode (3N-5=3x2-5=1). This is a stretching vibration at 4461 cm-1. However, this vibration is not visible on a spectrum because there is no change in dipole moment occuring during this vibration.

Atomic charges

Charges of H2

The hydrogen molecule is neutral and since both atoms are the same, we expect no charge on both atoms.

Structure and reactivity

Mono-metallic complex coordinating N2

BUYBUS

BUYBUS molecule

The mono-metallic complex that coordinates N2 was found to be trans-bis(dinitrogen)-tetrakis(trimethylphosphine)-tungsten. It can be identified by BUYBUS and its deposition number is 1117756. The bond lengths of the N-N bonds are 1.191 Å. This is a longer bond than the one found for N2 (1.106 Å). the reason for this longer N-N bond in the transition metal is the strength of the bond. Since the nitrogen atom has a positive charge because it has 4 bonds (as opposed to 3), there is less electron density surrounding the atom and therefore shared by the triple bond between the 2 nitrogens. This means that the bond is weaker and is thereby also longer.

Haber-Bosch process

The energy for the following reaction (the Haber-Bosch process) can be determined using the energies previously determined: N2 + 3H2 -> 2NH3

E(NH3)= -56.5577687 a.u.

2*E(NH3)= 2 * -56.5577687 = -113.1155374 a.u.

E(N2)= -109.5241287 a.u.

E(H2)= -1.1785393 a.u.

3*E(H2)= 3 * -1.1785393 = -3.5356179 a.u.

ΔE=2*E(NH3)-[E(N2)+3*E(H2)]= 2625.5 [ (-113.1155374)-[-109.5241287-3.5356179] ] = 2625.5 * (-0.0557908) = -146.4787454 kJ/mol

The energy difference is -146.5 kJ/mol. This means that the ammonia product is more stable than the gaseous reactants since the energy difference is negative and the reaction is therefore exothermic.

Molecule of my choice: CO2-carbon dioxide

C=O bond distance= 1.26 Å

O=C=O bond angle= 180°

The literature value of the C=O bond distance in carbon dioxide is 1.163 Å. ^[3] This is a slightly smaller value from the one found using Gaussian. However, the error is so small that we can consider the value found to be correct.

Information CO2 optimisation
Calculation method	RB3LYP
Basis set	6-31G(d,p)
Final energy (a.u.)	-188.58093945
RMS gradient (a.u.)	0.00001154
Point group	D*H

Item table

         Item               Value     Threshold  Converged?
 Maximum Force            0.000024     0.000450     YES
 RMS     Force            0.000017     0.000300     YES
 Maximum Displacement     0.000021     0.001800     YES
 RMS     Displacement     0.000015     0.001200     YES

CO2

The final file of the optimisation is available here

Vibrations and charges

Vibrational frequency analysis

caption
Wavenumber cm-1	640	640	1372	2436
Symmetry	PIU	PIU	SGG	SGU
Intensity arbitrary units	31	31	0	546

CO2 is a linear molecule which means that the 3N-5 rule is applied. Therefore, we expect to see 4 vibrational modes (3*3-5=4). The 2 vibrations at 640 cm-1 are degenerate bending vibrations. The vibration at 1372 cm-1 is a symmetric stretching vibration and the vibration observed at 2436 cm-1 is an asymmetric stretcing vibration.

On a spectrum, we expect to see 2 bands corresponding to the bending vibrations at 640 cm-1 and the asymmetric stretching vibration at 2436 cm-1. The two bending vibrations are degenerate which means that only one band will be observable for both vibrations. Furthermore, the symmetric stretching vibrations at 1372 cm-1 don't involve a change in dipole moment of the molecule which is why there is no band for this vibration on a spectrum.

Atomic charges

Charges of CO2

We expect a positive charge on the carbon atom and a negative charge on the oxygen atoms. Indeed, the carbon atom has a charge of 1.022 and the oxygen atoms each ahve a charge of -0.511. The oxygen atoms are more electronegative than the carbon atom which creates a dipole moment. Overall, the molecule is neutral, the negative charges on the oxygen atoms are compensated by the positive charge on the carbon atom (which is less electronegative than O).

Molecular orbitals

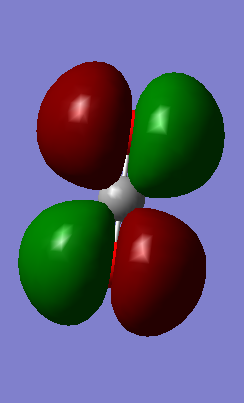

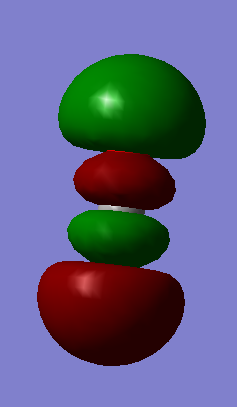

AO conrtibution	2p(x) from carbon and two 2p(x) from oxygen atoms	two 2p(x) from oxygen atoms	2p(z) from carbon and two 2p(z) from oxygen atoms	two 2s from oxygen atoms	2s orbital from carbon and two 2p(z) from oxygen atoms
Type of bonding of MO	bonding	non-bonding	bonding	non-bonding	bonding
Energy of MO	high in energy	HOMO	slightly deep in energy	deep in energy	deep in energy
Occupied/unoccupied	occupied	occupied	occupied	occupied	occupied
Effect on bonding	π bonding	lone pair	σ bonding	lone pair	σ bonding
